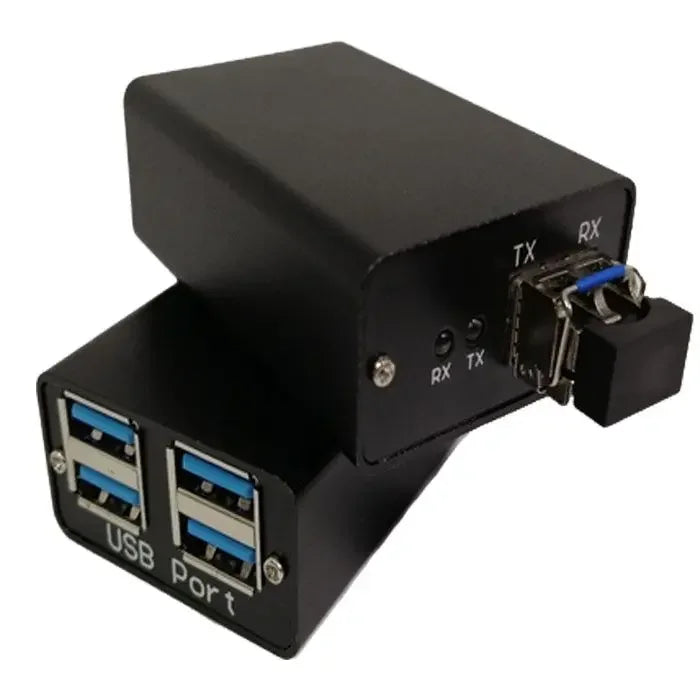

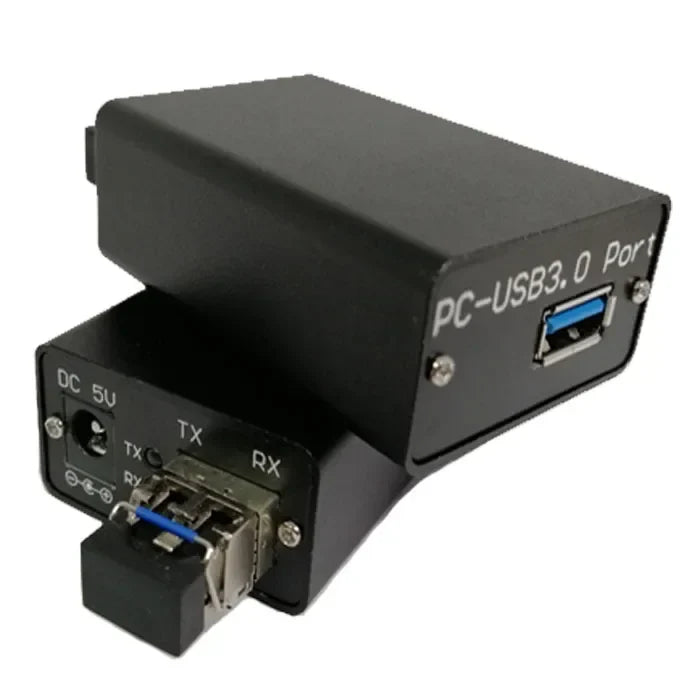

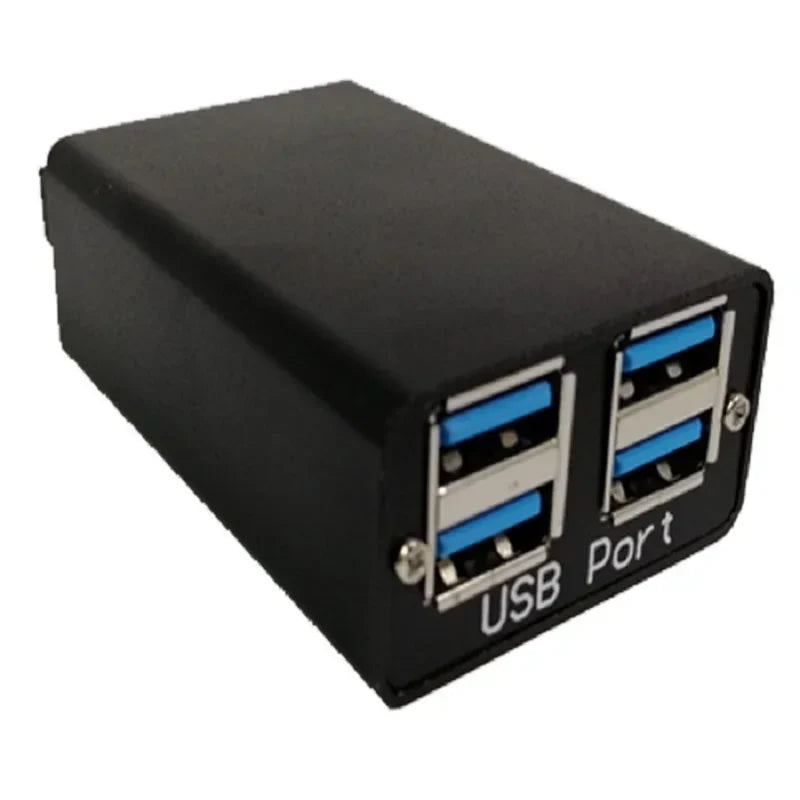

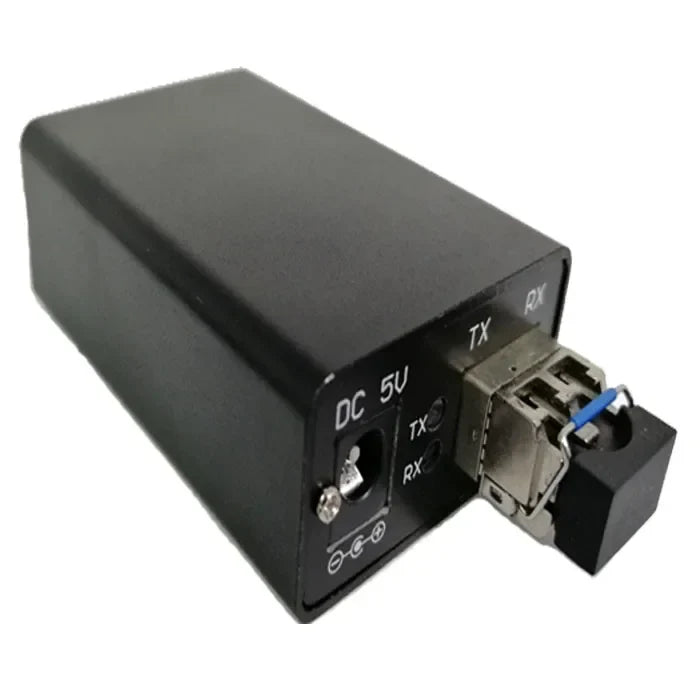

USB 3.0 over Optical Fibre Extender Transmitter & Receiver

Extend a USB 3.0 connection over optical fibre where electrical isolation, low electromagnetic interference and longer cable runs are important. The transmitter and receiver form a point-to-point link for compatible industrial, touchscreen and peripheral applications.

Key features

• USB 3.0 data extension over optical fibre
• Electrical isolation between the local and remote ends
• Transmitter and receiver architecture
• Suitable for compatible cameras, touchscreens, storage and industrial USB devices

Technical specifications

Installation overview

1. Connect the transmitter to the host computer.
2. Connect the compatible optical fibre between the two units.
3. Power the units as required by the supplied configuration.
4. Connect the USB device to the receiver and confirm enumeration before deployment.

Before you buy

Confirm fibre type, connectors, power requirements, operating-system support and the bandwidth needs of the attached USB device. Maximum distance is not stated here because it depends on the exact optical configuration. Fibre patch leads, power supplies and USB cables are included only if shown for the selected supplier configuration. Test with the target device before permanent installation.
