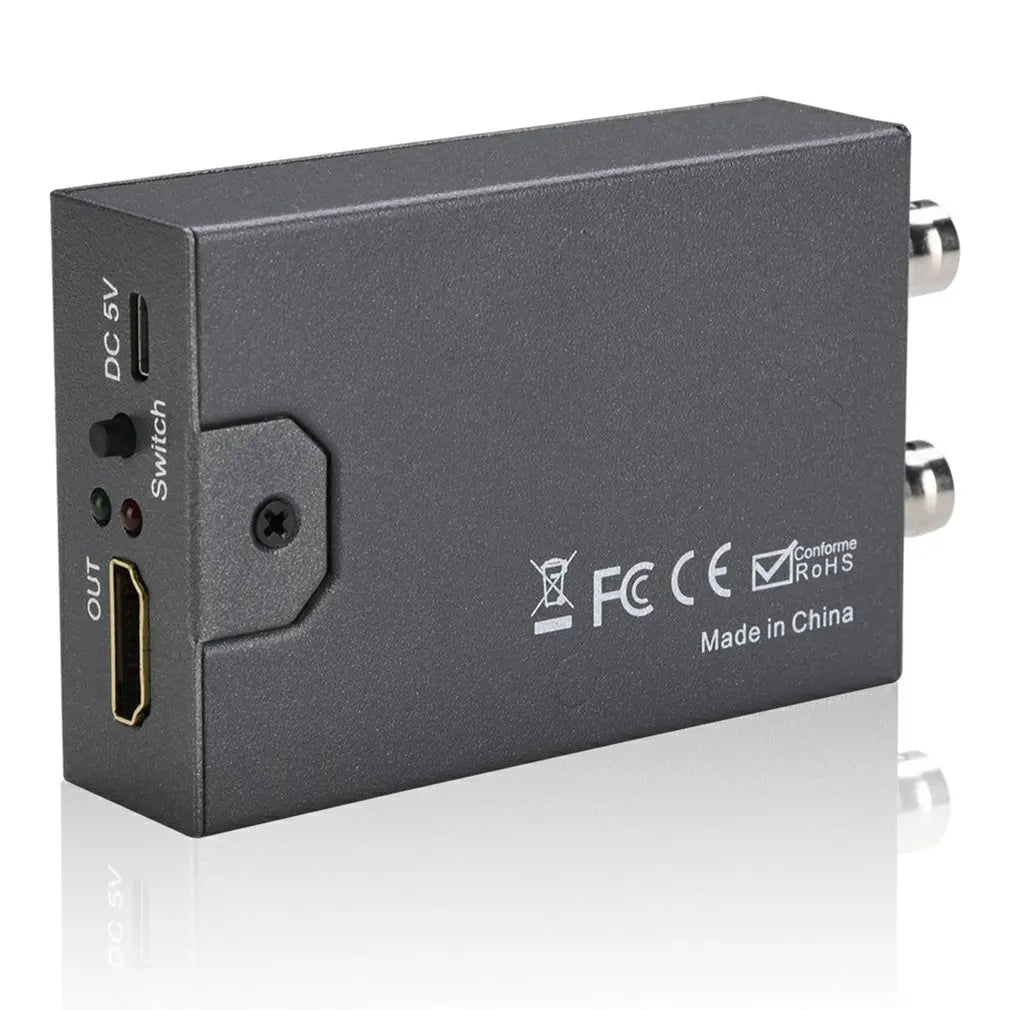

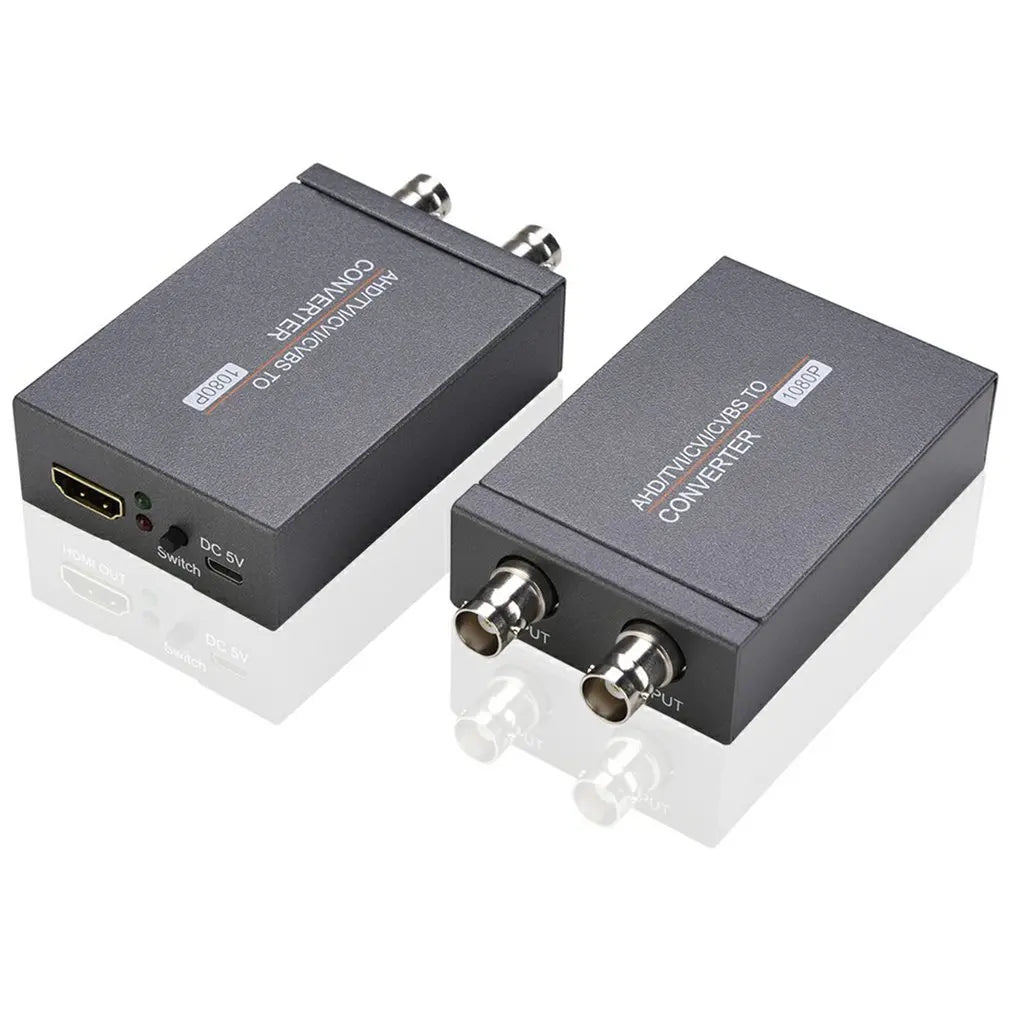

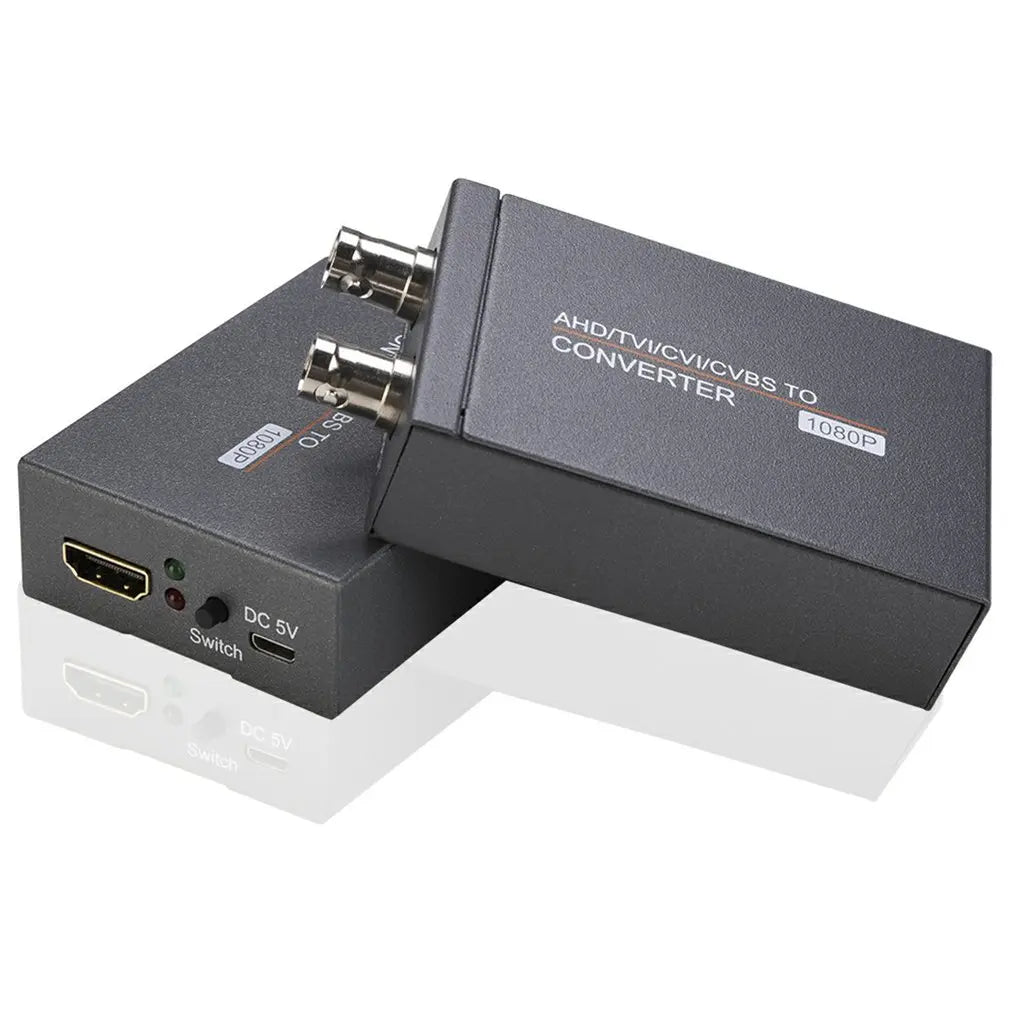

AHD/TVI/CVI/CVBS to HDMI Converter with BNC Loop Output – 1080p

Connect a compatible coaxial CCTV camera to an HDMI monitor for live viewing. This compact metal converter accepts AHD, HD-TVI, HD-CVI and CVBS video through its BNC input and provides selectable 720p or 1080p HDMI output.

Features

• BNC video input and BNC loop output for compatible analogue CCTV signals.
• HDMI output selectable between 720p and 1080p.
• Automatic input-resolution detection within the supported signal formats.
• Compact metal enclosure measuring approximately 97 × 55 × 23 mm.
• Powered by a 5V 1A USB supply through the included power cable.

Supported signals

Before ordering

Confirm your camera's video standard and output resolution. A BNC connector alone does not establish compatibility. This unit converts CCTV video to HDMI; it is not an SDI converter, an IP-camera decoder or an HDMI-to-BNC converter. An 8MP input is converted to the selected HDMI output resolution; this unit does not provide 4K HDMI output.

In the box

• 1 × CCTV-to-HDMI converter
• 1 × USB power cable
• 1 × instructions

A suitable 5V 1A USB power supply, HDMI cable, camera and display are required separately.
