Makerbase CANable V2.0 USB-to-CAN Adapter with Case

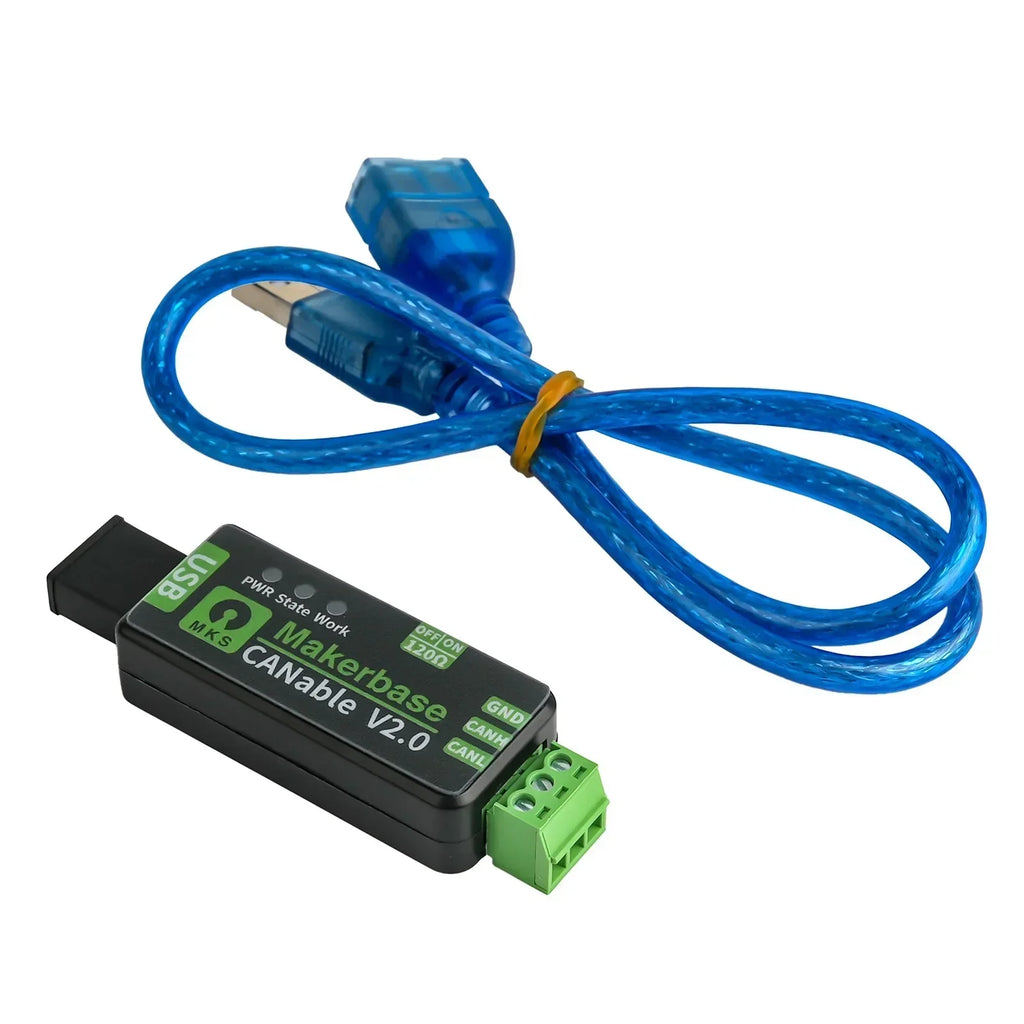

Makerbase CANable V2.0 adapter with case and USB extension lead

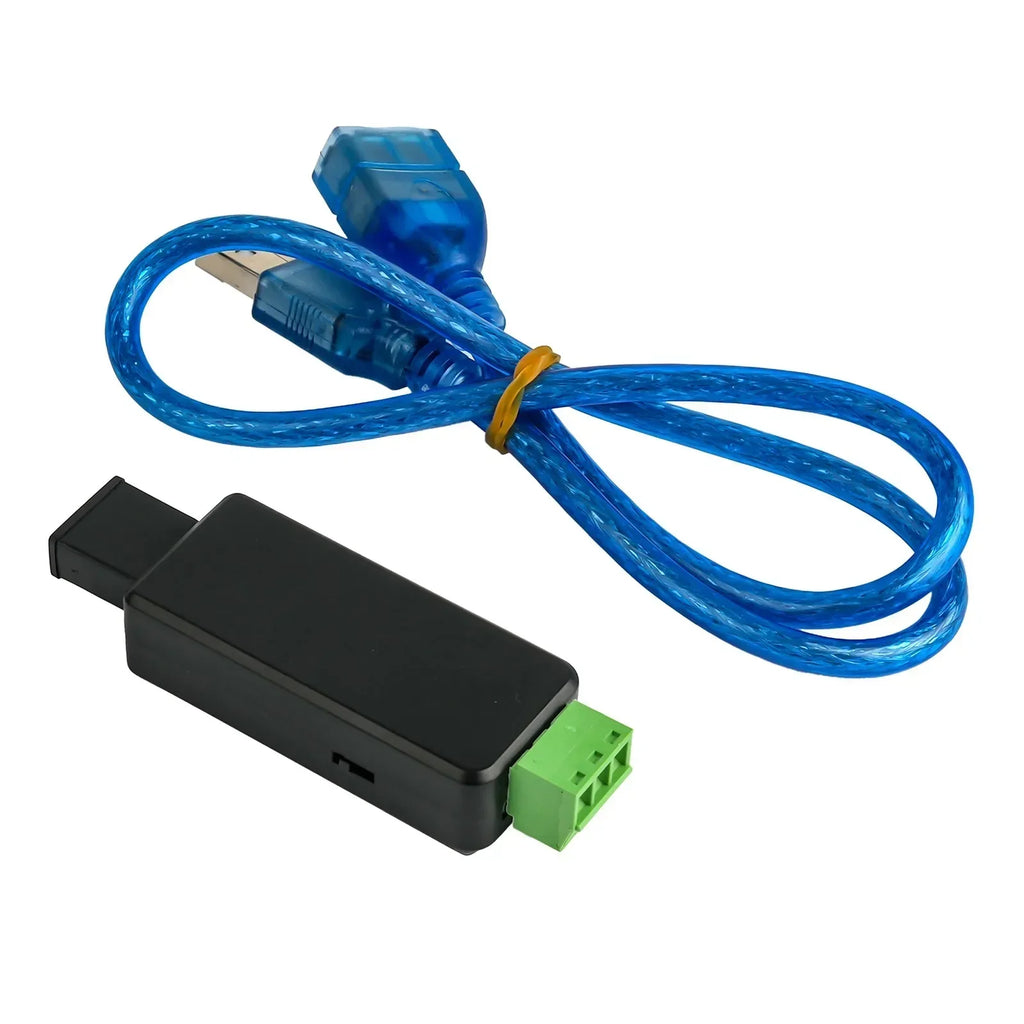

Rear view of the CANable V2.0 case with terminal block

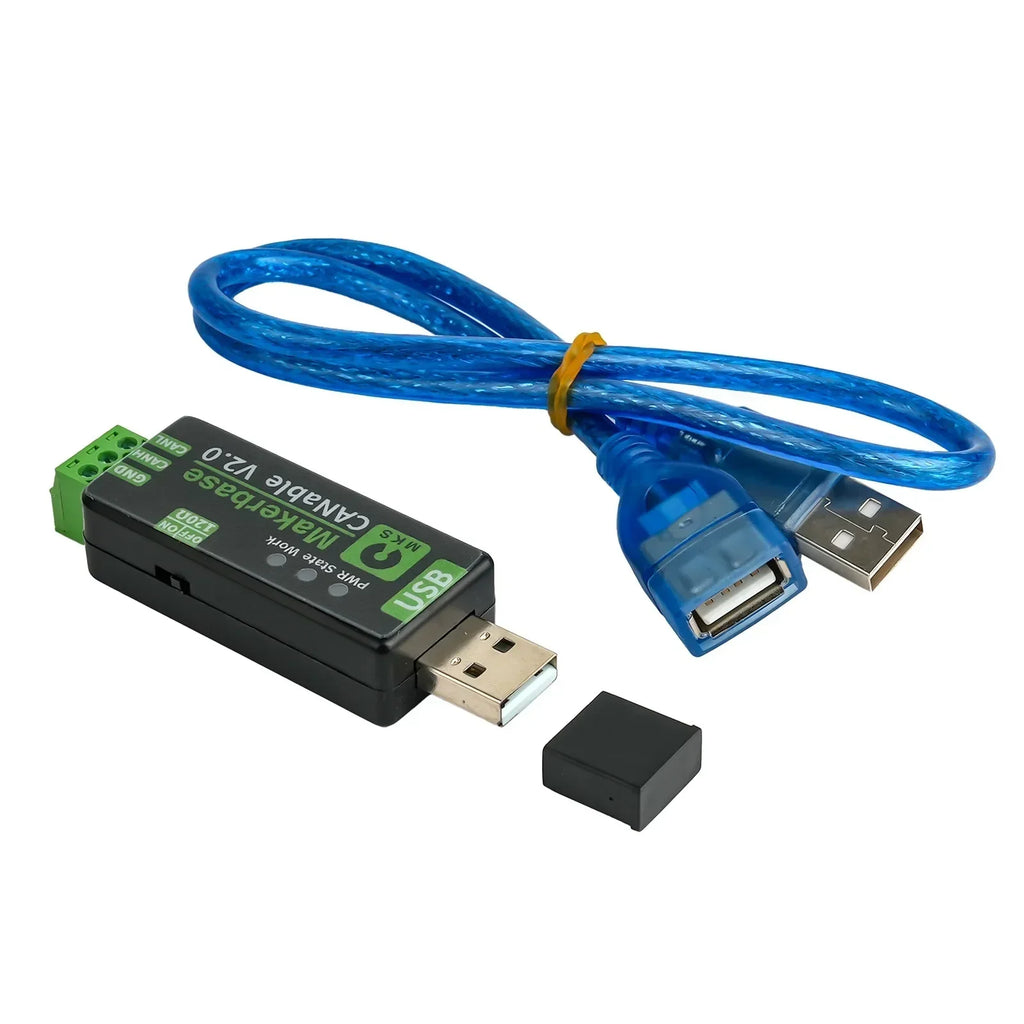

CANable V2.0 USB-A plug and removable protective cap

Makerbase CANable V2.0 USB-to-CAN Adapter with Case

$59.95

Connect a computer to a CAN bus for development, monitoring and bench diagnostics. This Makerbase CANable V2.0 adapter comes in a protective case with a USB extension lead and screw terminals for CANH, CANL and ground.

Features

CAN 2.0A and CAN 2.0B support, with rates up to 1 Mbit/s.
Support for compatible slcan and candleLight firmware.
Selectable 120 Ω termination.
Power, state and activity indicators.
USB-A connection and removable terminal block.

Included

1 × standard, non-isolated CANable V2.0 adapter in a case and 1 × USB extension lead. This is the non-Pro model.

Compatibility

Driver, firmware and host-software setup is required. CAN FD operation depends on compatible firmware and software; confirm support for your intended setup before purchase. The supplier reports compatibility limitations with TSMaster on V2.0. This is a development interface and does not include an OBD cable or vehicle diagnostic software.

Connect only to a compatible CAN bus with the correct wiring and termination. This version provides no galvanic isolation.
