$59.95

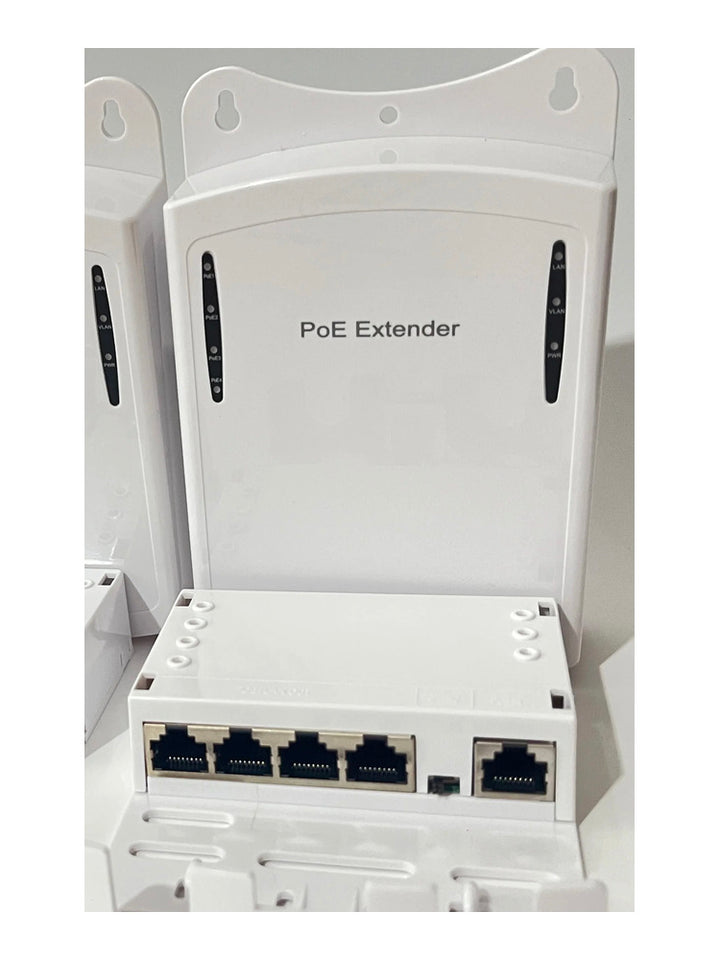

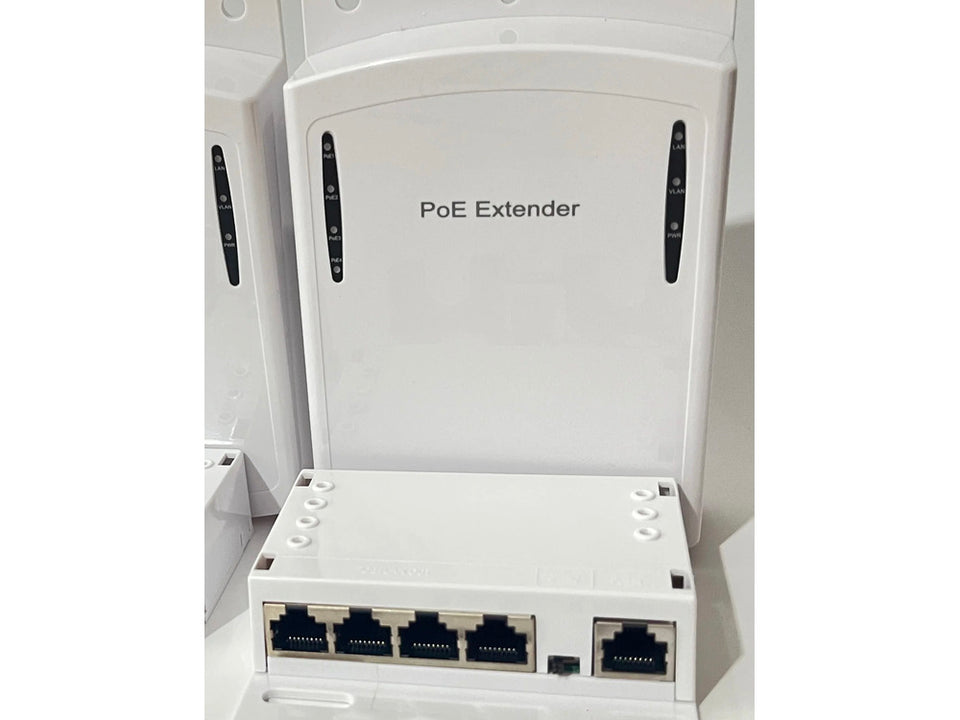

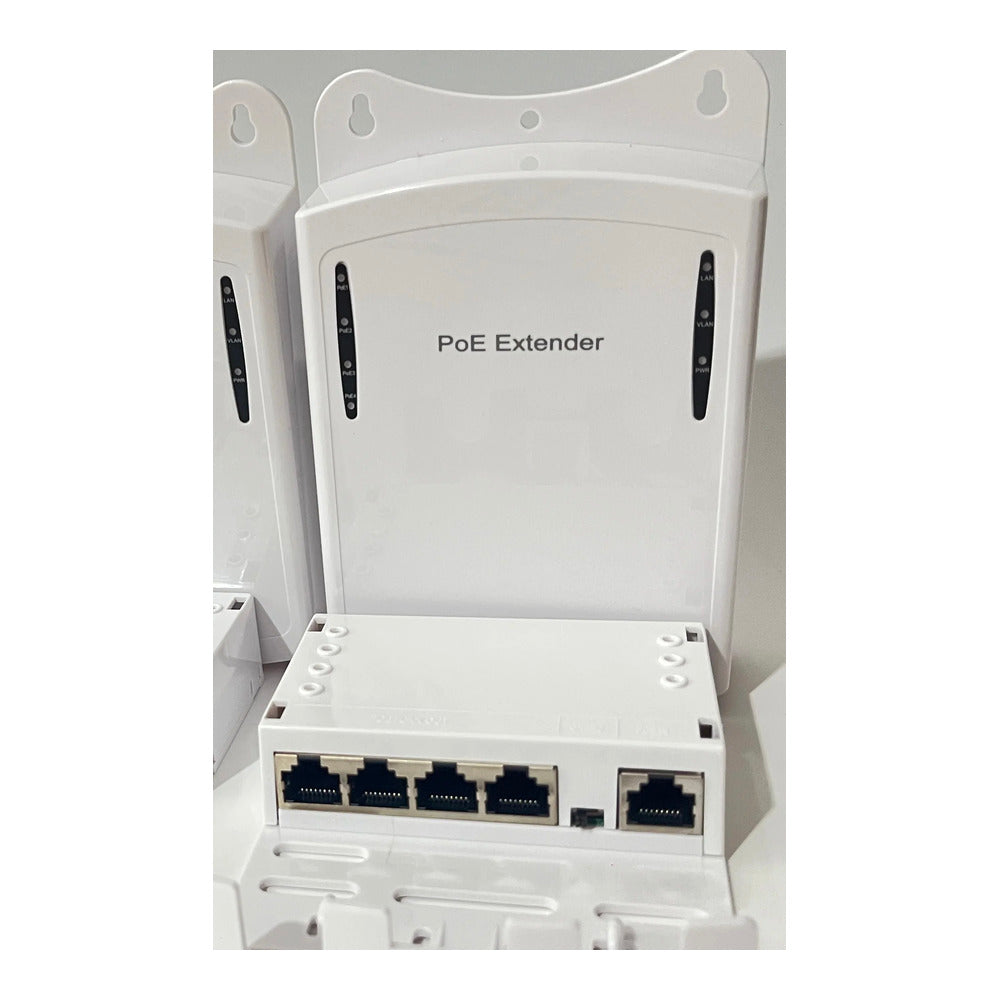

Extends one compatible PoE feed to four downstream PoE device ports. Weather-resistant wall-mount enclosure advertised to IP66. Useful for low-voltage camera and access-point deployments without a local AC outlet.

Key features

  • Extends one compatible PoE feed to four downstream PoE device ports
  • Weather-resistant wall-mount enclosure advertised to IP66
  • Useful for low-voltage camera and access-point deployments without a local AC outlet

Technical specifications

LINEIN SKU LINEIN-CT-084
PoE input 1 × IEEE 802.3af/at compatible
PoE outputs 4 × downstream ports
Data rate 100Mbps advertised
Enclosure Outdoor wall-mount, supplier advertises IP66
Power Powered from upstream PoE

Compatibility and installation

Check the connector direction, host capability, operating-system support and the complete cable/device signal chain before ordering. Install or connect only when equipment is powered down where appropriate.

Before you buy: Total downstream power is limited by the upstream PoE source and cable loss. This is not a router and does not create additional network bandwidth. Outdoor glands and installation must be sealed correctly.

Package: one fixed LINEIN-CT-084 configuration as described. Computers, displays, drives, cards and cables shown for context are not included unless explicitly stated.
