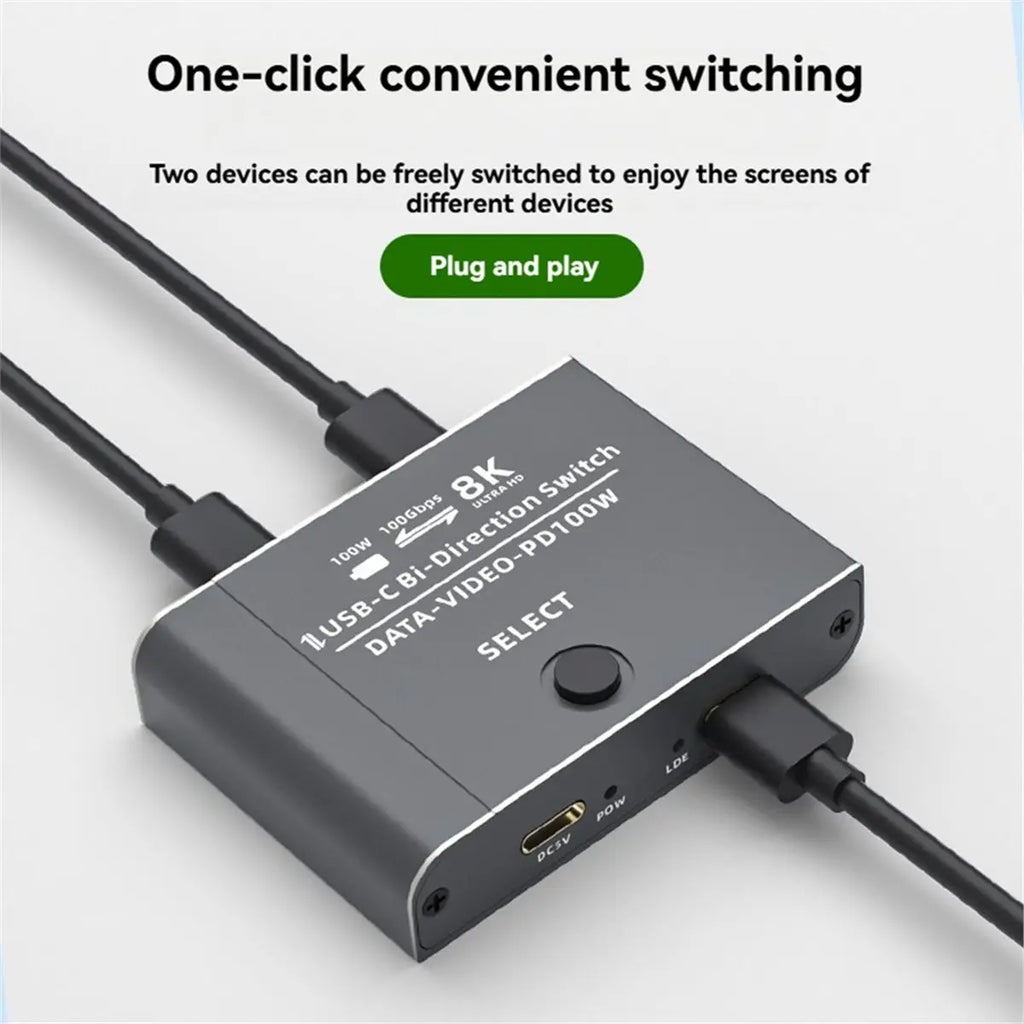

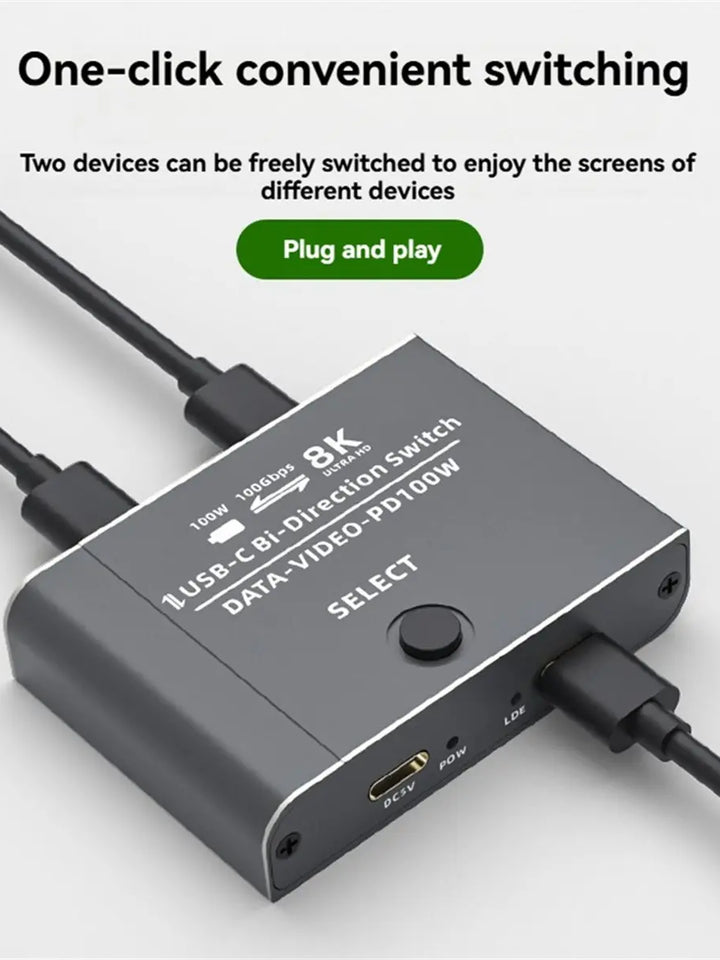

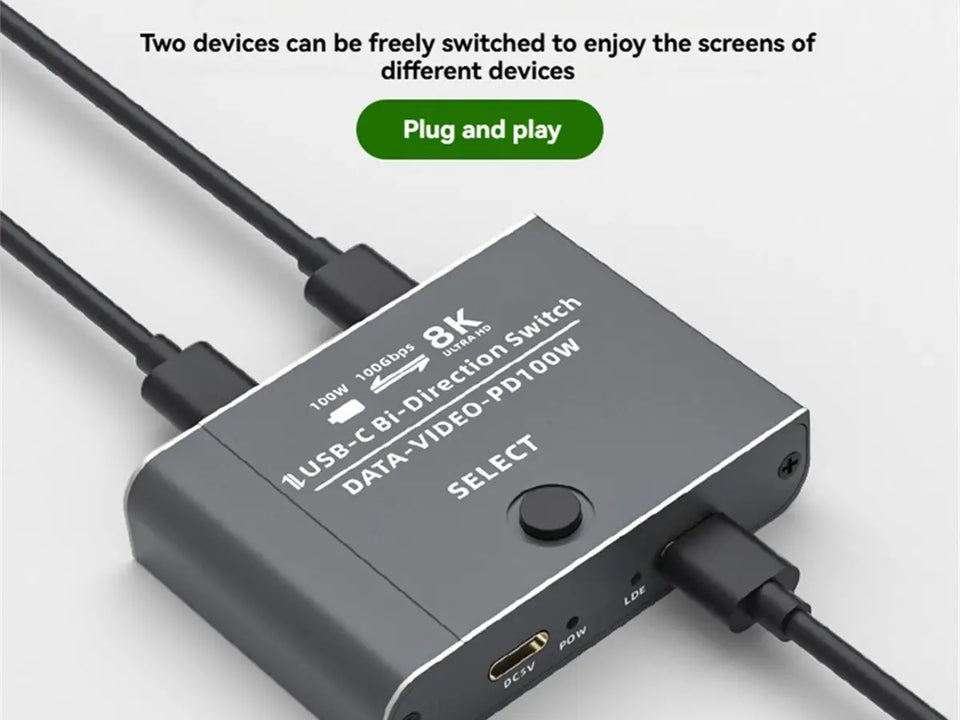

10Gbps Bidirectional USB-C Switch with 100W PD

Switch one full-featured USB-C connection between two hosts or two compatible USB-C display paths without repeatedly reconnecting cables. Designed for tidy workstations, hot desks and test benches, this compact bidirectional selector carries compatible video, data and USB Power Delivery through a single USB-C path.

Key features

• Bidirectional 2-in-1-out or 1-in-2-out operation
• Up to 10Gbps USB data transfer on compatible USB 3.2 Gen 2 equipment
• Supports USB-C DisplayPort Alt Mode video up to 8K-class signals where every connected device and cable supports the required mode
• USB Power Delivery pass-through up to 100W; actual charging is limited by the charger, cable and receiving device
• Push-button source/destination selection

Technical specifications

Compatibility and setup

1. Confirm the USB-C ports on the source and display support video output/input if using a monitor.
2. Use short, fully featured USB-C cables rated for the required data, video and PD power.
3. Connect the common port and the two selectable devices, then press the button to switch.

Before you buy: this is a selector, not a dock or signal converter. It does not make a data-only USB-C port output video, and it does not show two displays simultaneously. Thunderbolt compatibility depends on the connected devices and cables; Thunderbolt certification is not claimed. Charger, monitor and host devices are not included.
