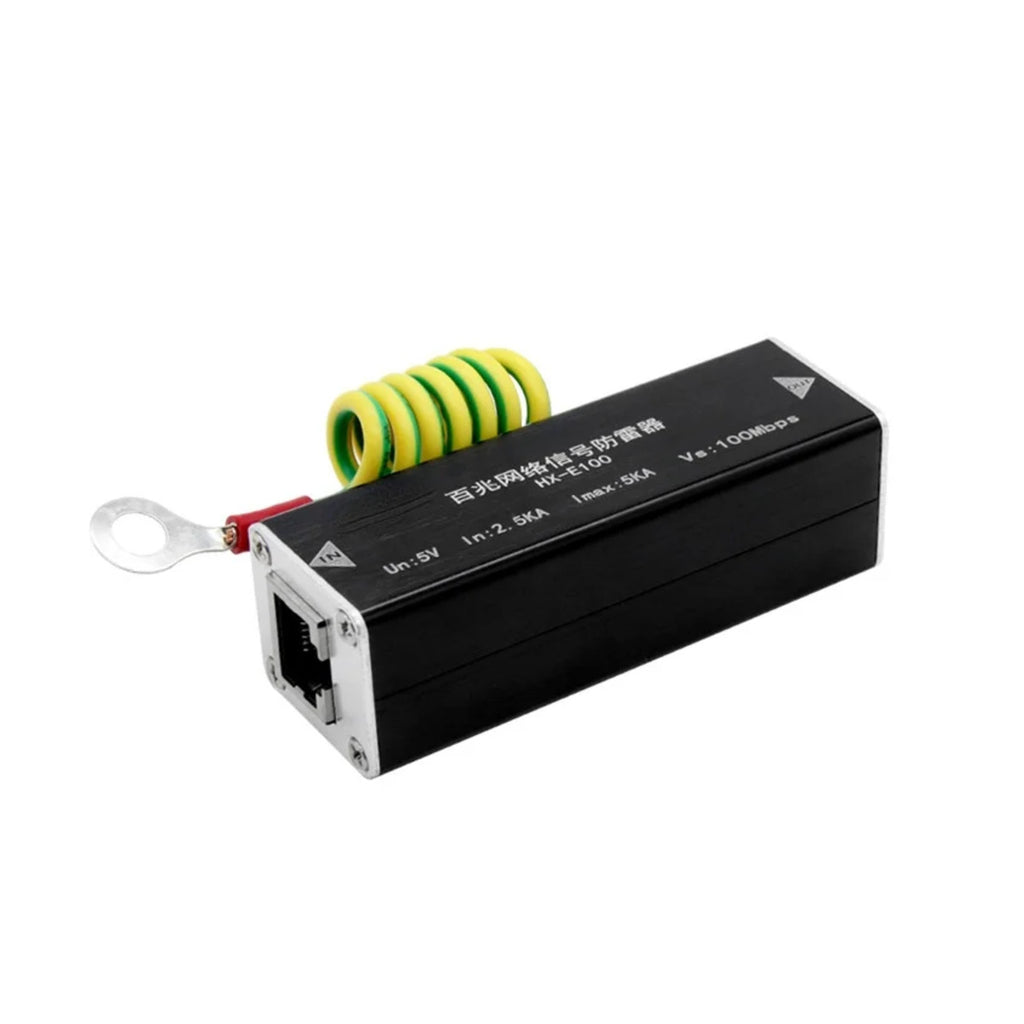

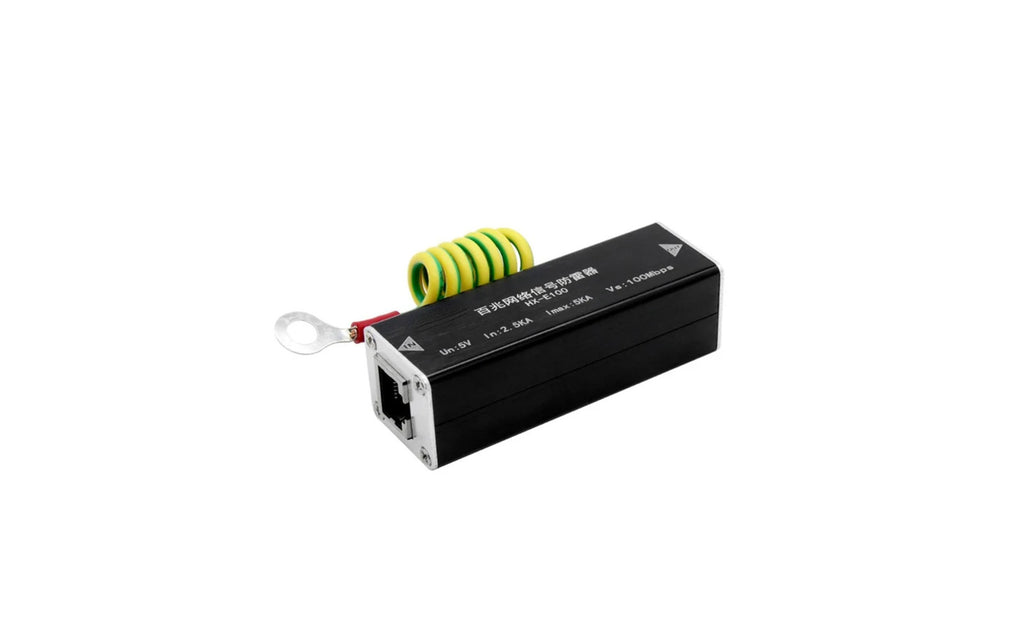

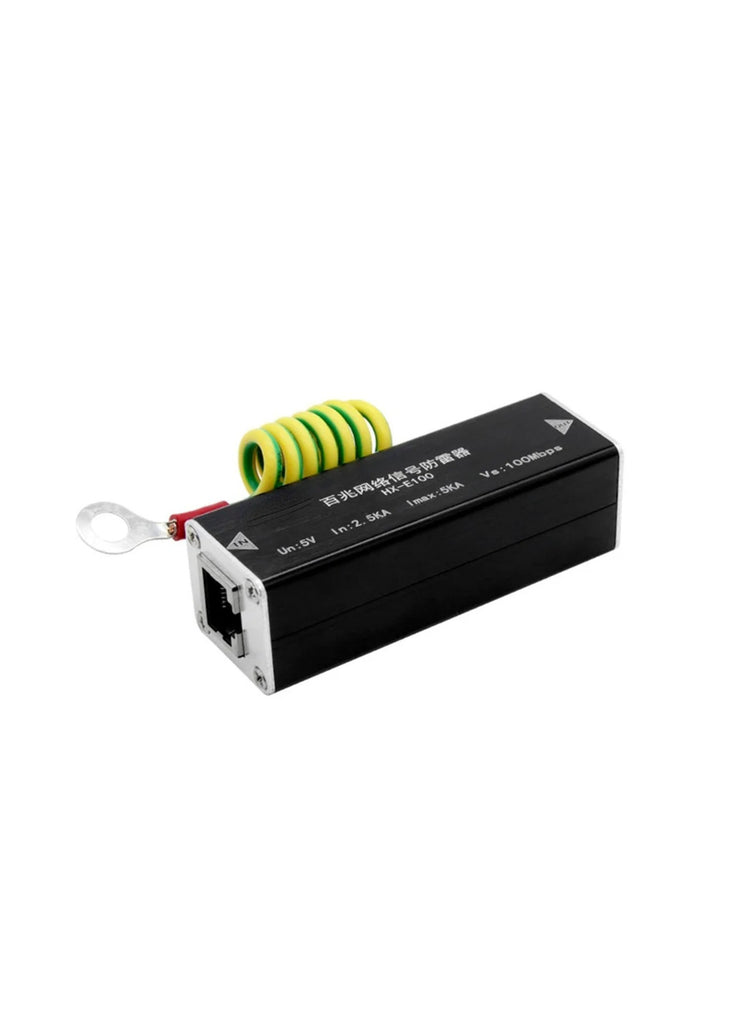

100Mbps RJ45 PoE Surge Protector with Earth Lead

Add an in-line protection point to a 10/100 Mbps Ethernet or PoE run where a correctly bonded earth connection is available.

Why choose it

• Fixed single configuration with no confusing option selection.
• Clear signal direction and compatibility guidance to reduce setup errors.
• Useful for Australian home offices, workshops, AV systems and small-business installations.

Technical specifications

Compatibility

Designed for 10/100 Mbps Ethernet wiring using pins 1/2/3/6. It is not a Gigabit Ethernet protector and must be connected to an effective protective earth to operate as intended.

Setup

1. Disconnect the network run.
2. Install the protector in line, observing the IN/OUT markings on the housing.
3. Have the earth lead bonded to a suitable earth point by a qualified installer.
4. Reconnect and test the network and PoE device.

What's included

• 1 × RJ45 surge protector with earth lead

Before you buy

This low-voltage network accessory does not replace building-level lightning protection. Installation quality and earthing determine protection performance.

Please confirm ports, signal direction and operating-system support before ordering. Specifications are for the fixed configuration named above.
