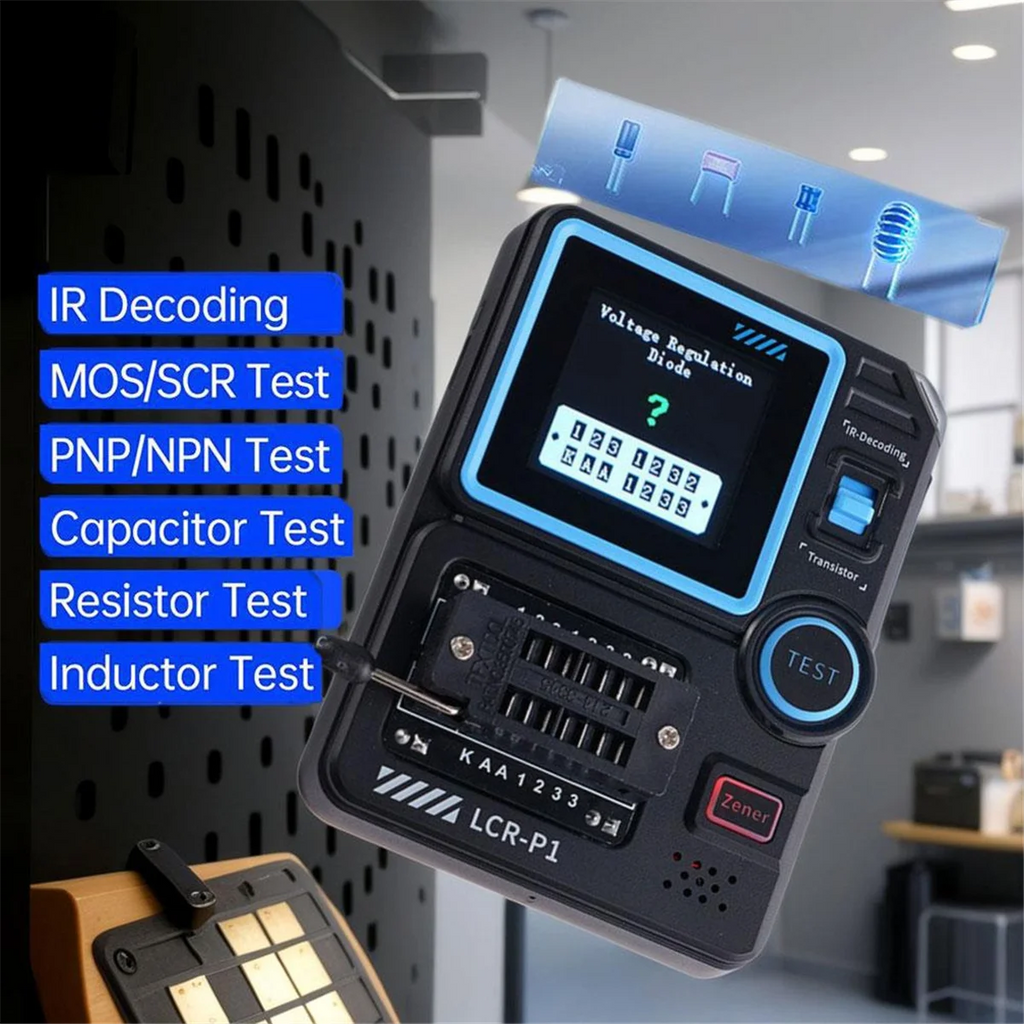

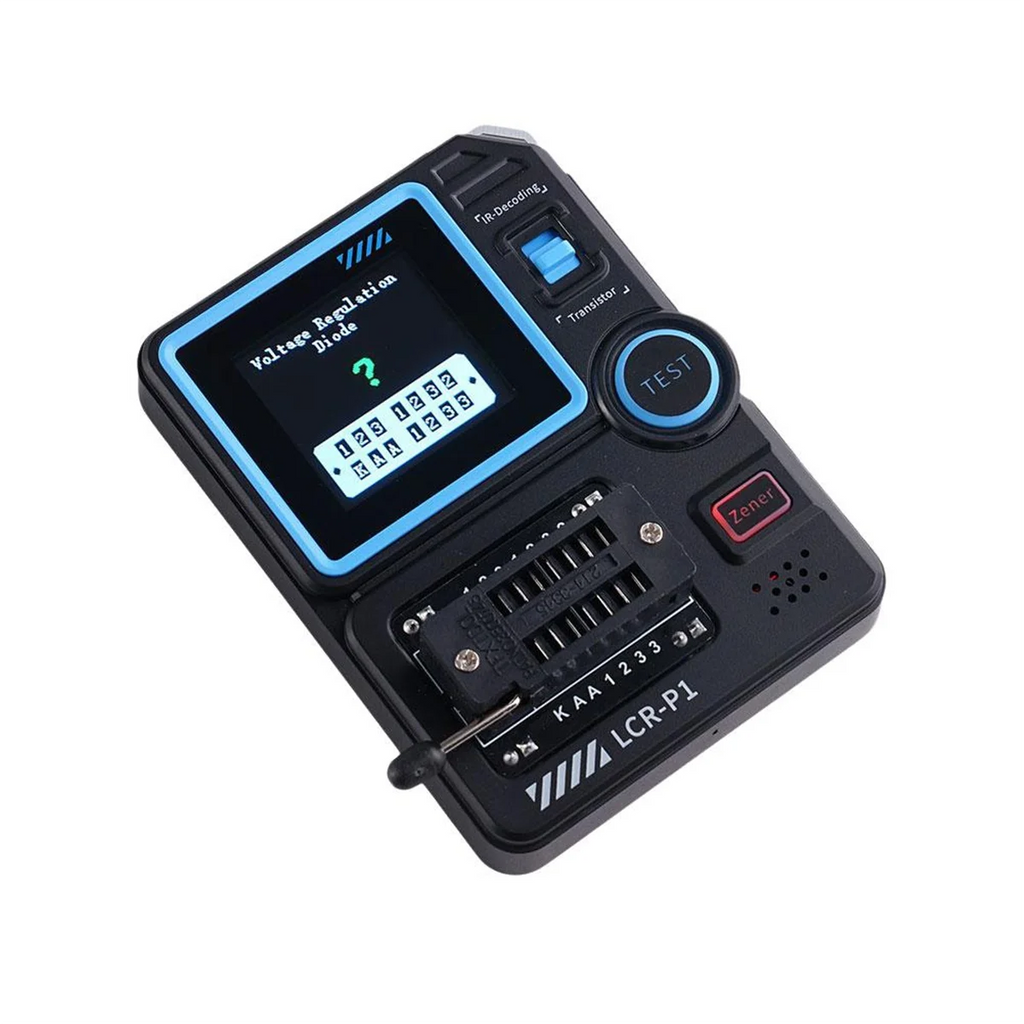

LCR-P1 Multifunction Transistor, ESR & Component Tester

Identify and check common electronic components during repair, sorting and prototyping. Automatic recognition provides a convenient first-pass result for semiconductors and passive components.

Key features

• Automatic component identification
• Tests transistors, MOSFETs, diodes and triacs
• Capacitance, resistance, inductance and ESR functions

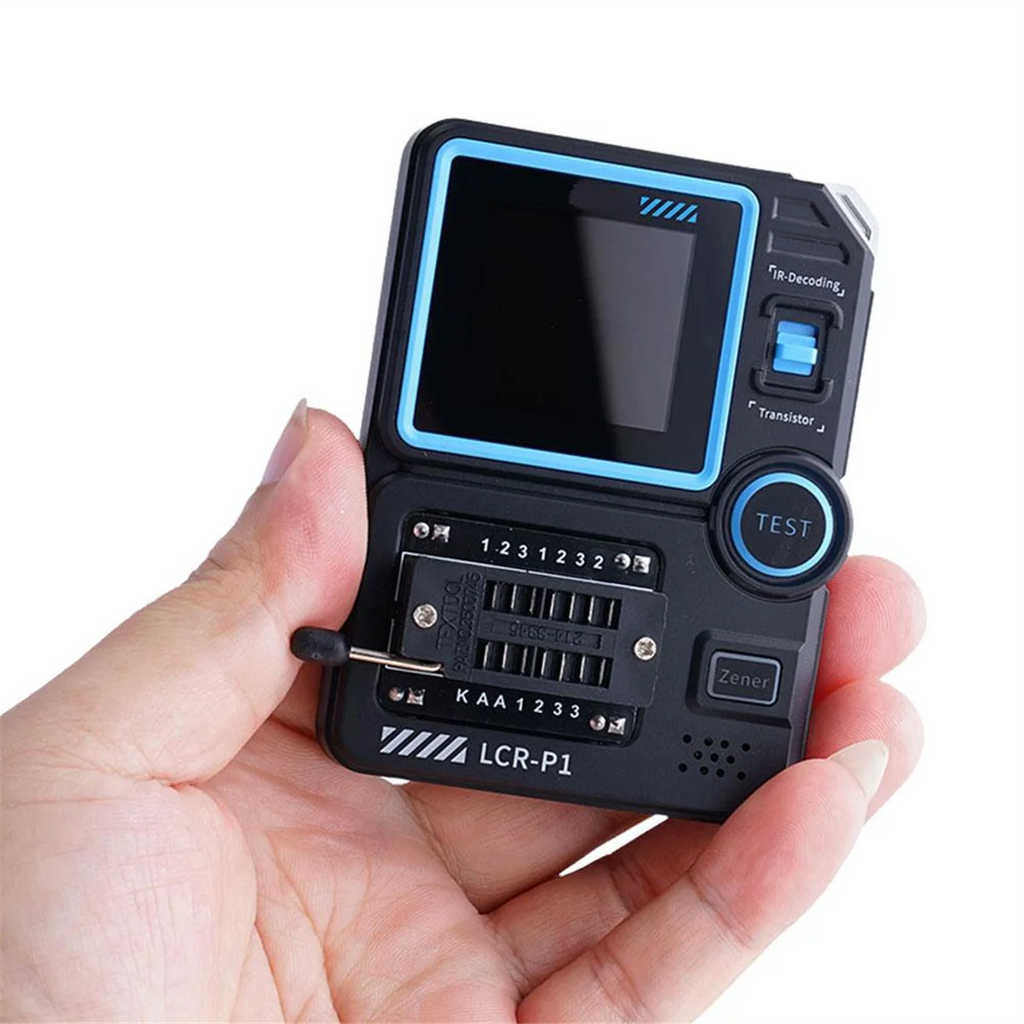

• Colour display and compact bench format

Specifications

• Model: LCR-P1
• Supported component families: diode, triode, MOSFET, IGBT, resistor, capacitor and inductor
• Display: colour graphical display
• Power: rechargeable internal battery

Package includes

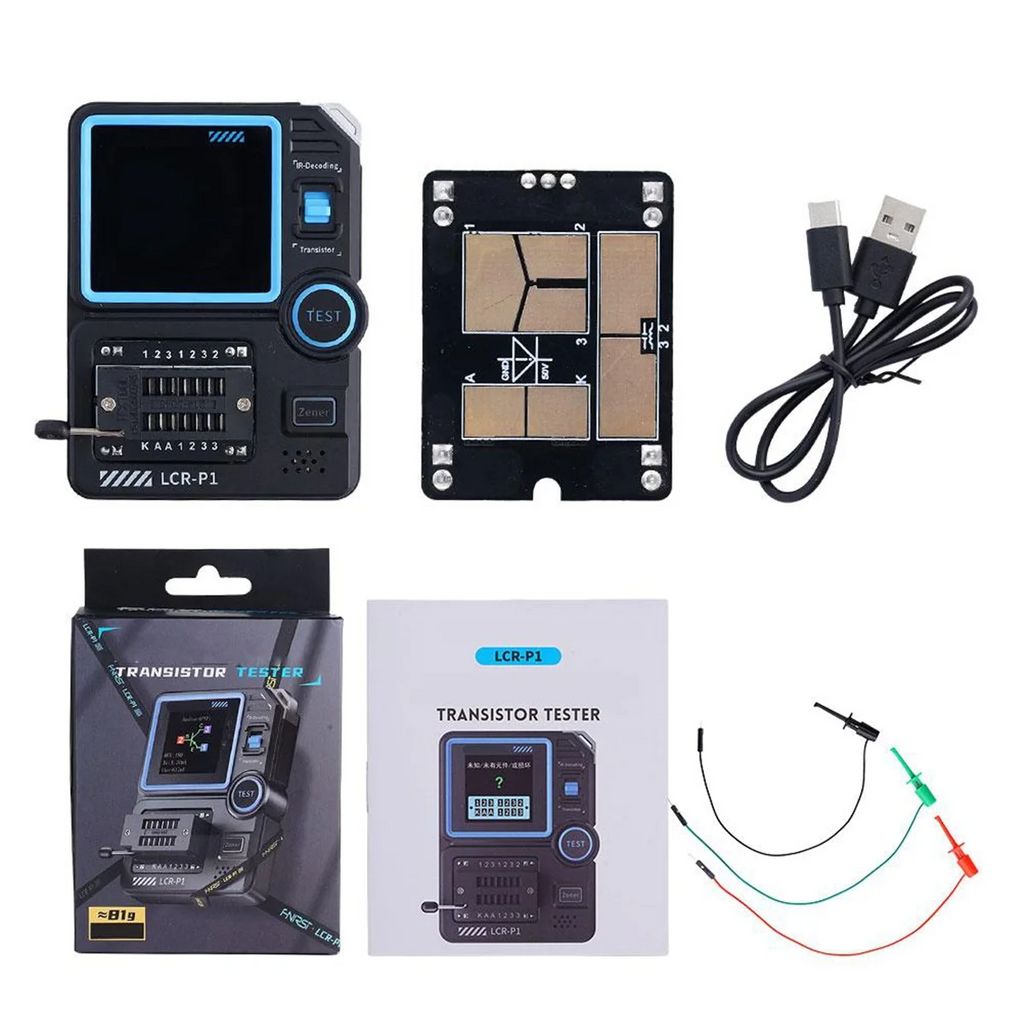

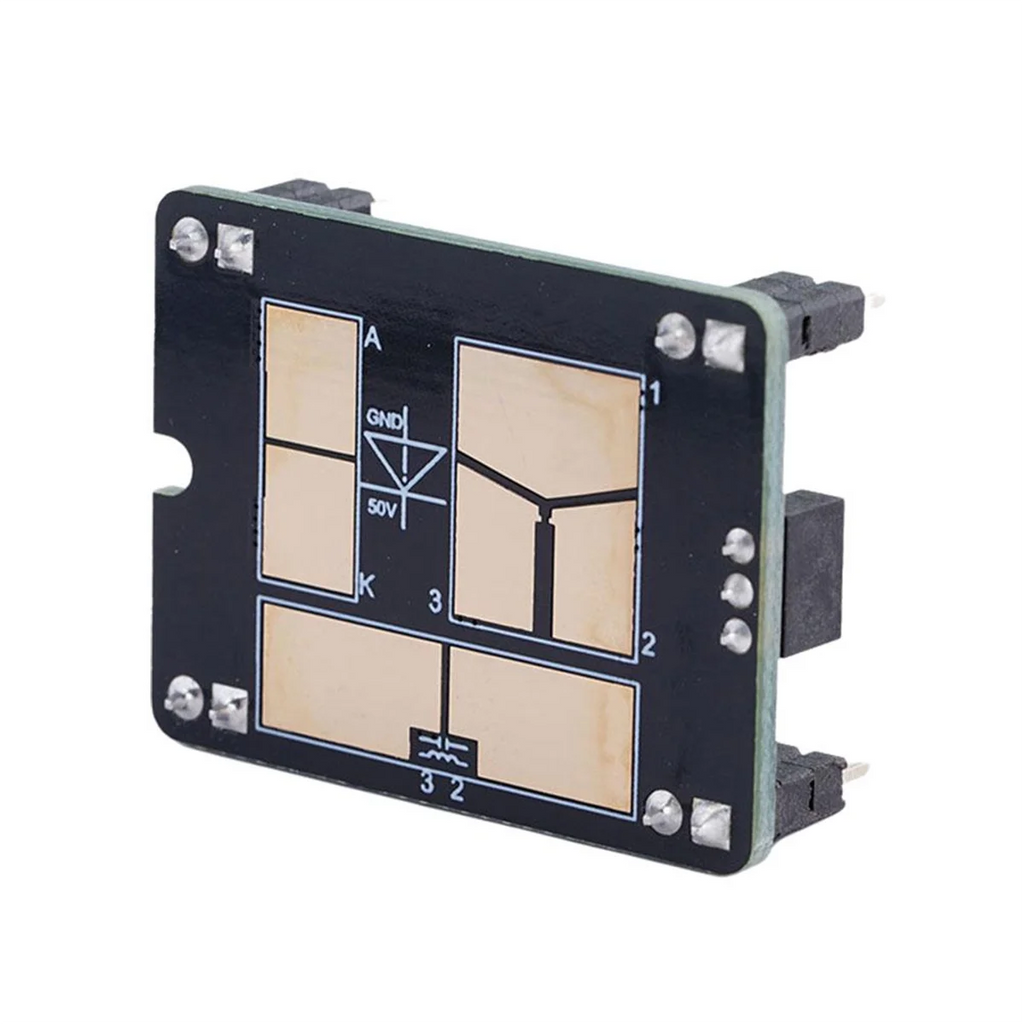

1 × LCR-P1 tester, test fixture/leads, charging cable and user documentation.

Compatibility note: Discharge capacitors fully before testing and observe the instrument's maximum input limits.
