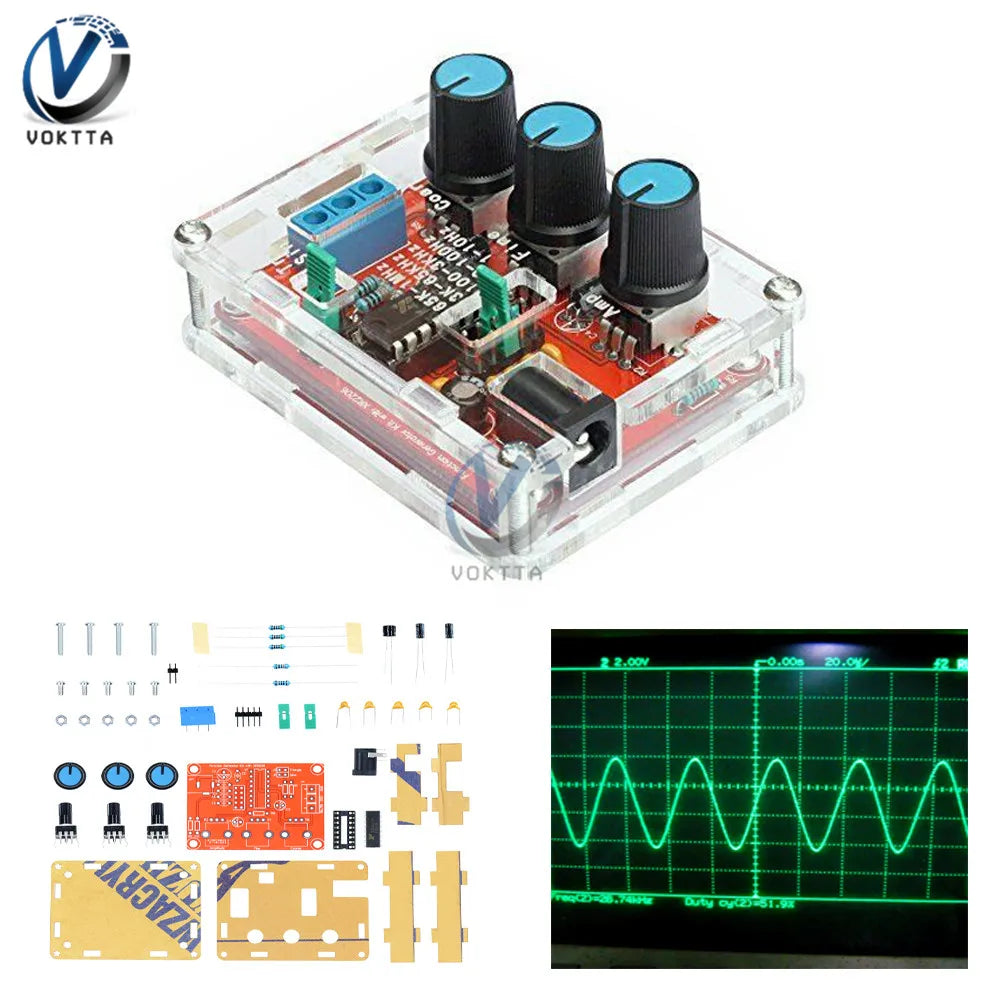

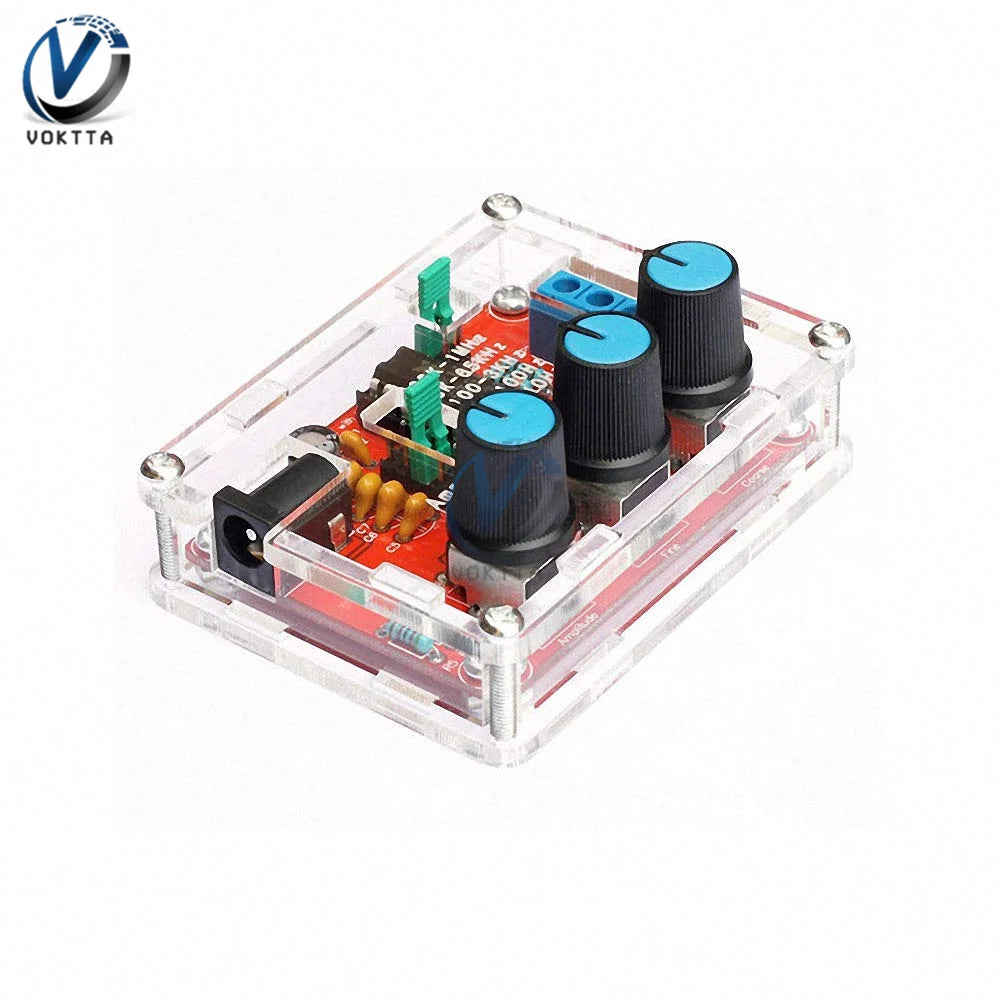

XR2206 1Hz–1MHz Signal Generator DIY Soldering Kit – Red

XR2206 1Hz–1MHz Signal Generator DIY Soldering Kit – Red is selected for practical Australian workshop, field-service and maintenance use. It combines a focused configuration with clear specifications and free delivery Australia-wide.

Key features

• Hands-on signal-generator project for electronics learning and bench use
• Sine, triangle and square-wave outputs
• Approximate 1Hz–1MHz working range
• Compact red PCB kit

Specifications

• Core device: XR2206
• Frequency range: approximately 1Hz–1MHz
• Waveforms: sine, triangle and square
• Configuration: red DIY kit

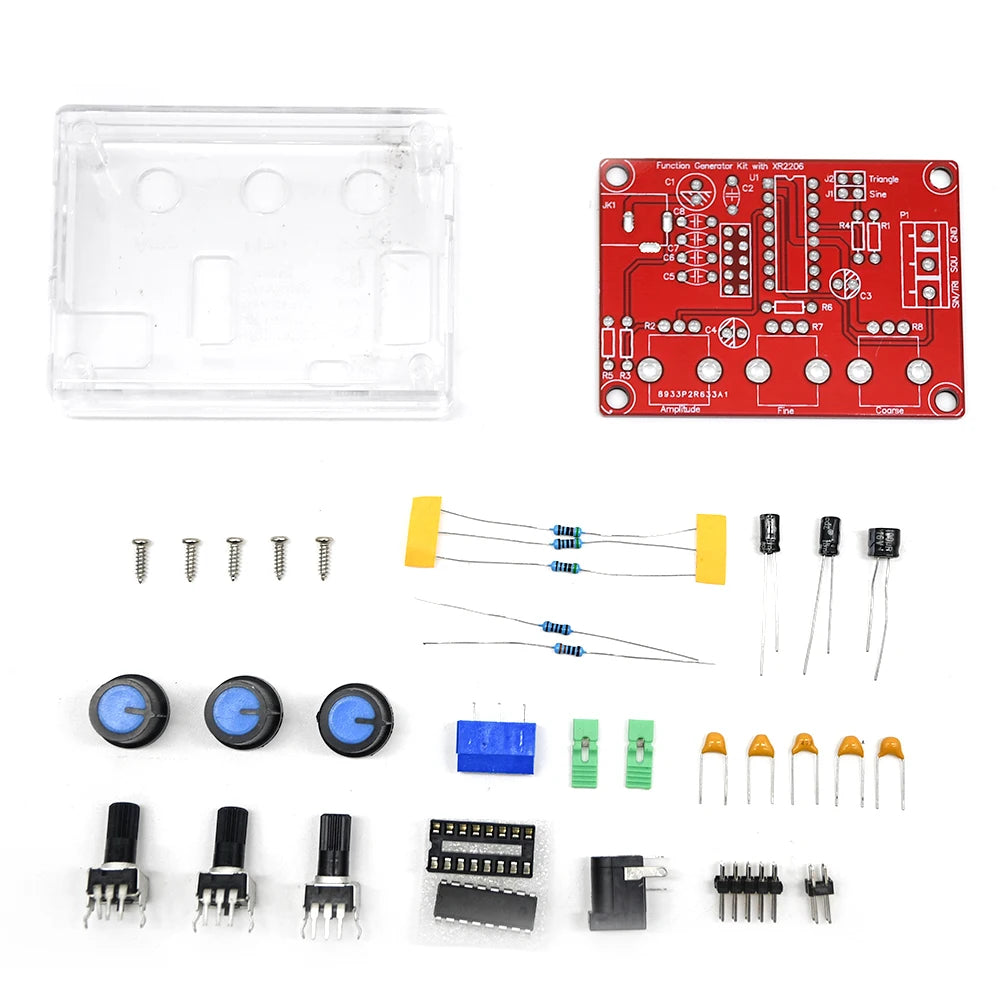

In the box

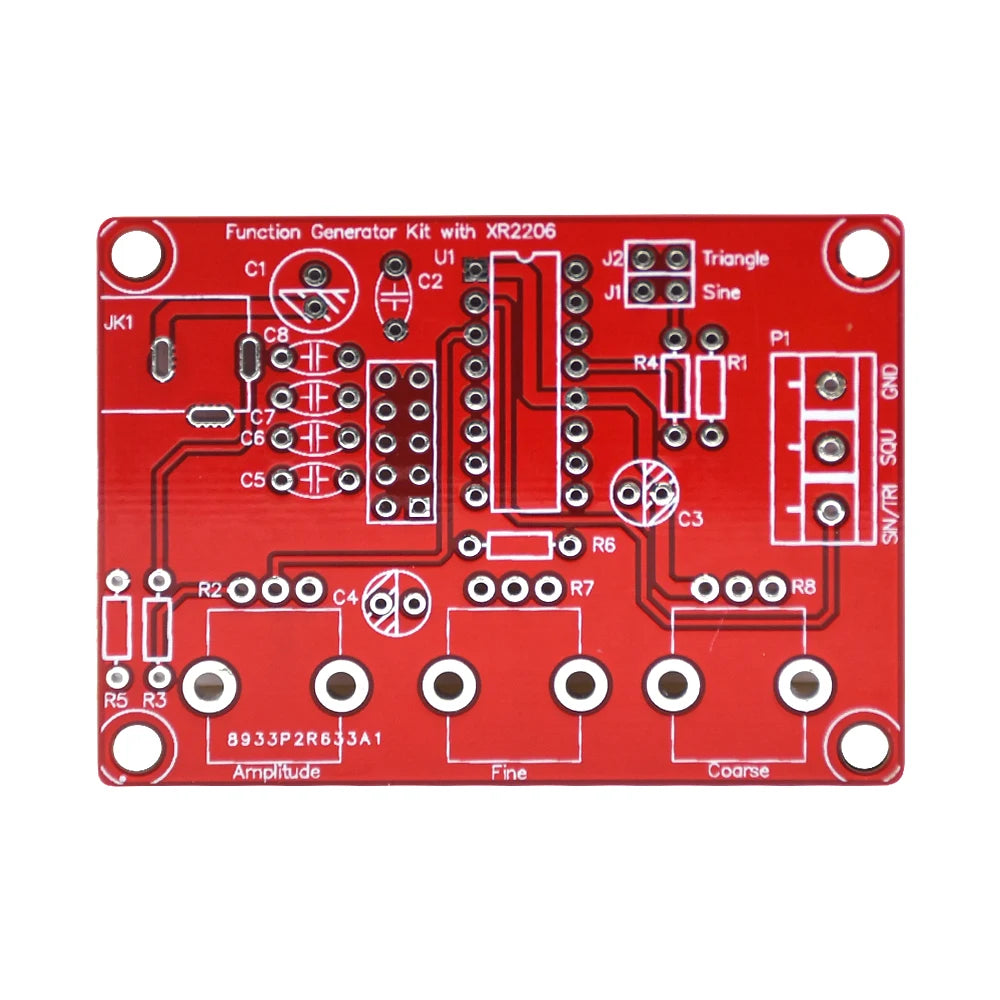

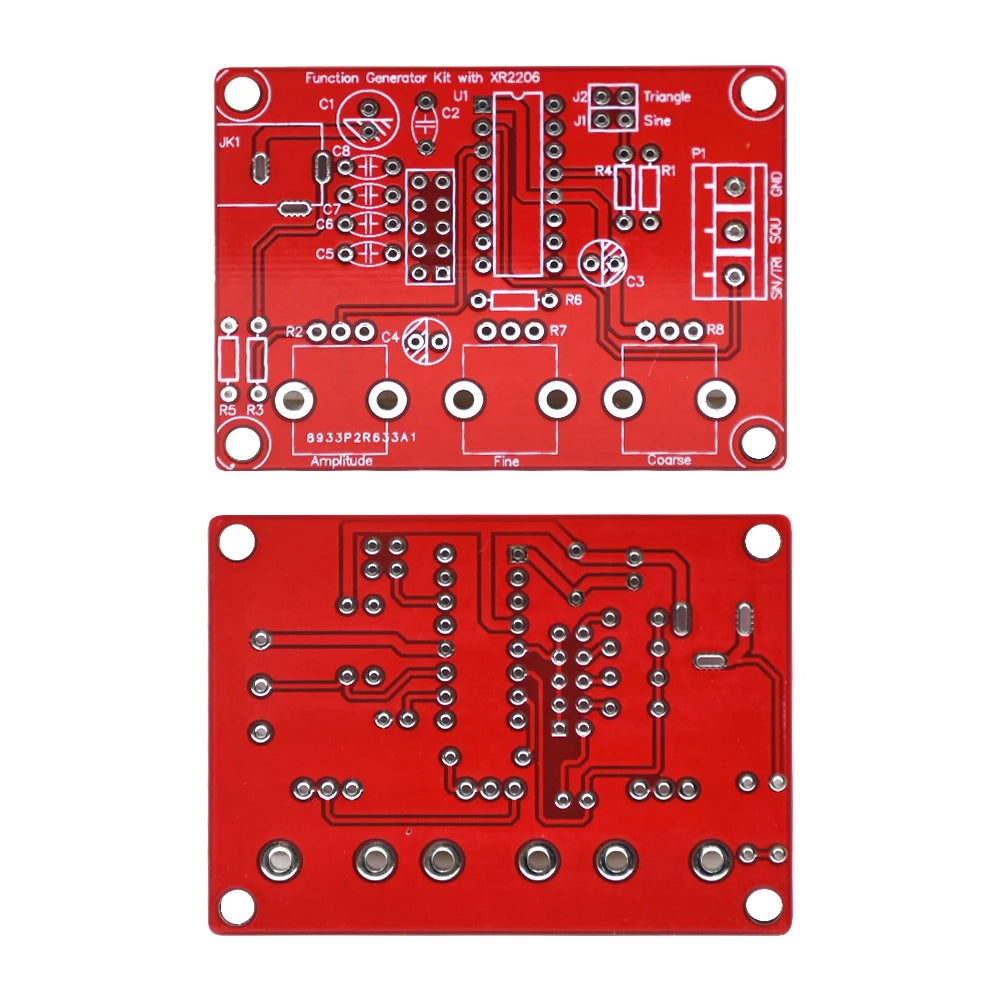

• XR2206 PCB and kit components
• Knobs and connection hardware shown for the configuration

Important use information

This is an unassembled DIY soldering kit, not a calibrated laboratory instrument. Assembly and testing require soldering skills. Use only with a suitable low-voltage, AU-compliant power source.
