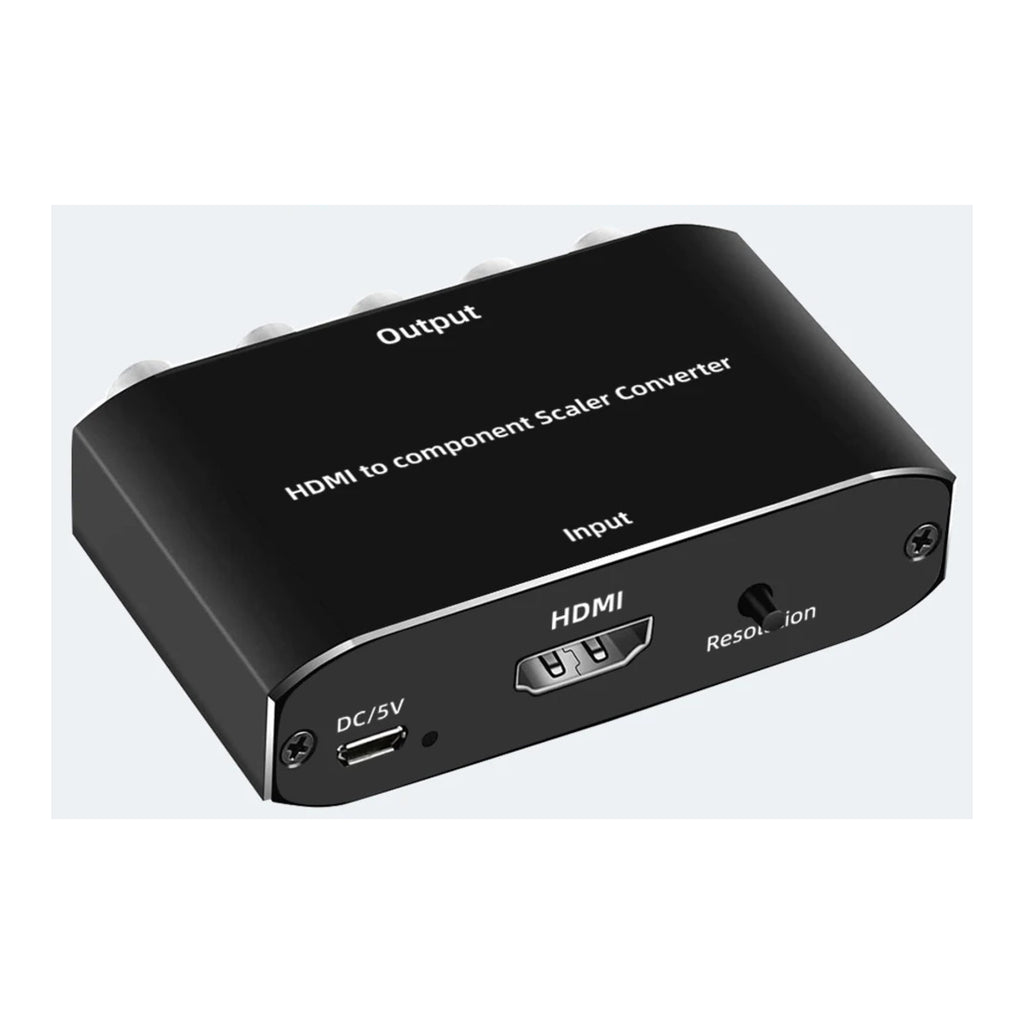

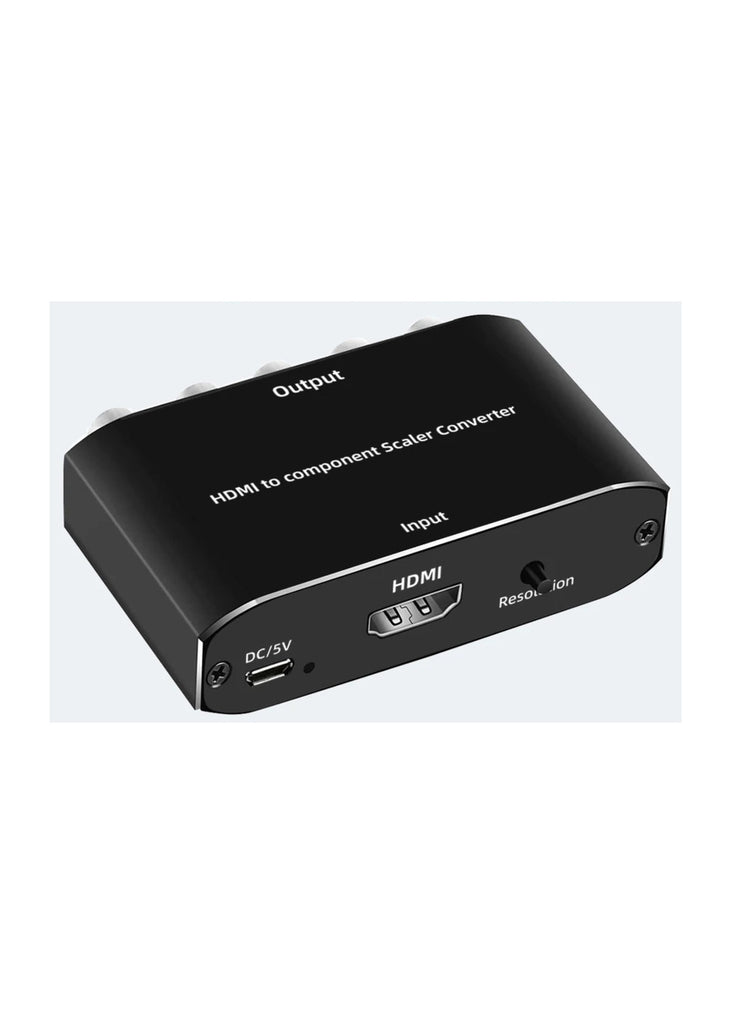

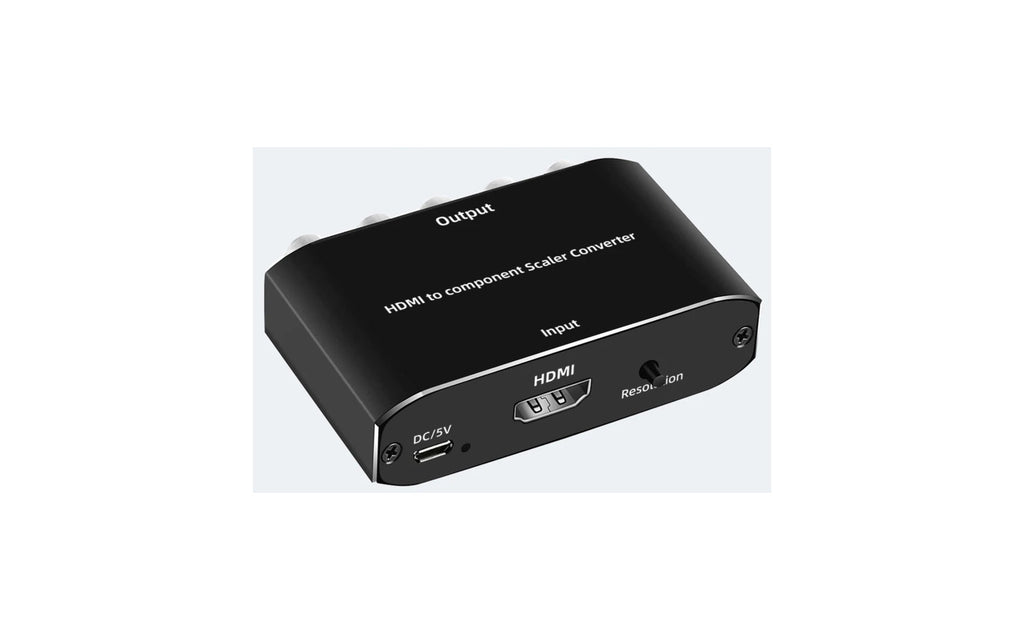

HDMI to Component YPbPr Scaler Converter with Stereo Audio

Convert an HDMI source for a display or AV system that accepts analogue YPbPr component video and left/right stereo audio.

Why choose it

• Fixed single configuration with no confusing option selection.
• Clear signal direction and compatibility guidance to reduce setup errors.
• Useful for Australian home offices, workshops, AV systems and small-business installations.

Technical specifications

Compatibility

The destination must accept YPbPr component video; composite video inputs are not compatible. Protected HDMI content may not convert. Select an output format supported by the display.

Setup

1. Connect the HDMI source to the converter input.
2. Connect five RCA leads for Y/Pb/Pr and left/right audio.
3. Connect 5 V USB power.
4. Choose a supported output resolution, then power-cycle the source if required.

What's included

• 1 × HDMI-to-YPbPr scaler converter

Before you buy

HDMI, RCA and USB power cables/adaptor are not included unless shown in the selected supplier package. This is not a YPbPr-to-HDMI converter.

Please confirm ports, signal direction and operating-system support before ordering. Specifications are for the fixed configuration named above.
