DisplayPort 1-to-3 MST Splitter Hub | LINEIN Australia

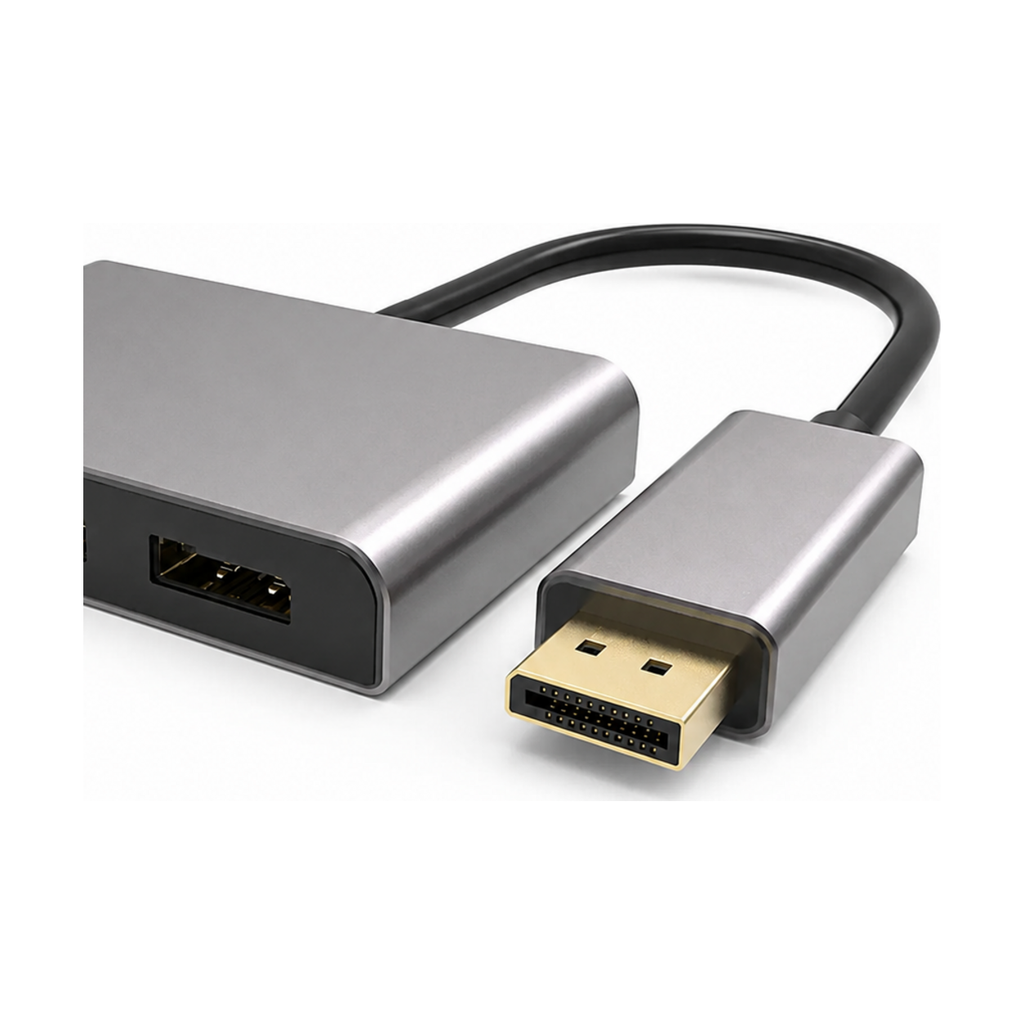

DisplayPort 1-to-3 MST Splitter detail 1

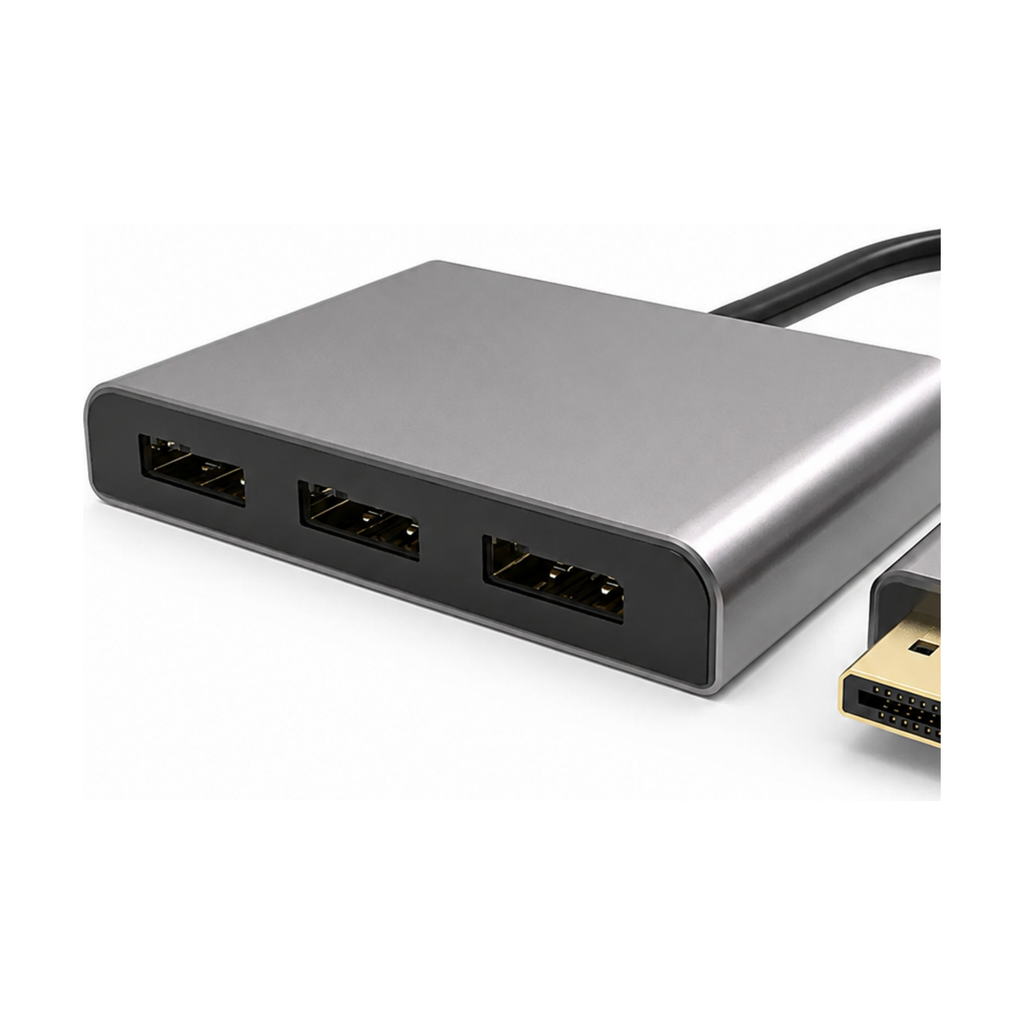

DisplayPort 1-to-3 MST Splitter detail 2

DisplayPort 1-to-3 MST Splitter Hub – 8K Support

$99.95

DisplayPort 1-to-3 MST Splitter Hub for reliable desk, studio and technical workflows.

Connect up to three DisplayPort displays from one compatible DisplayPort source for productivity and multi-monitor workstations. MST distributes the source link bandwidth across connected screens.

Key benefits

Three DisplayPort outputs from one host connection
Extended-desktop and mirror modes where supported
DisplayPort 1.4-class high-resolution capability on compatible systems

Technical specifications

LINEIN reference	LINEIN-CT-031
Host connector	1 × full-size DisplayPort
Display outputs	3 × full-size DisplayPort
Technology	DisplayPort MST
Advertised standard	DisplayPort 1.4-class support
Advertised maximum	Up to 8K on a compatible single-output scenario; total bandwidth is shared
Host requirement	MST-capable graphics adapter and operating system
Power	Model-dependent auxiliary power

Setup and use

Connect the hub to a compatible DisplayPort output.
Connect one to three displays using suitable DisplayPort cables.
Connect auxiliary power if required and configure monitor layout in the operating system.

Compatibility and safety checklist

macOS commonly mirrors MST outputs and may not provide three independent external desktops.
Adding displays reduces the resolution/refresh-rate bandwidth available to each output.
8K and high-refresh use require compatible graphics hardware, displays and certified cables.

Package contents

1 × DisplayPort 1-to-3 MST hub

Not included: DisplayPort cables and auxiliary power accessories are included only where stated.

Before ordering

Check the ports, protocols, operating-system support and complete system requirements against your equipment. Performance figures are advertised maximums for a compatible configuration and are not guaranteed in every installation.
