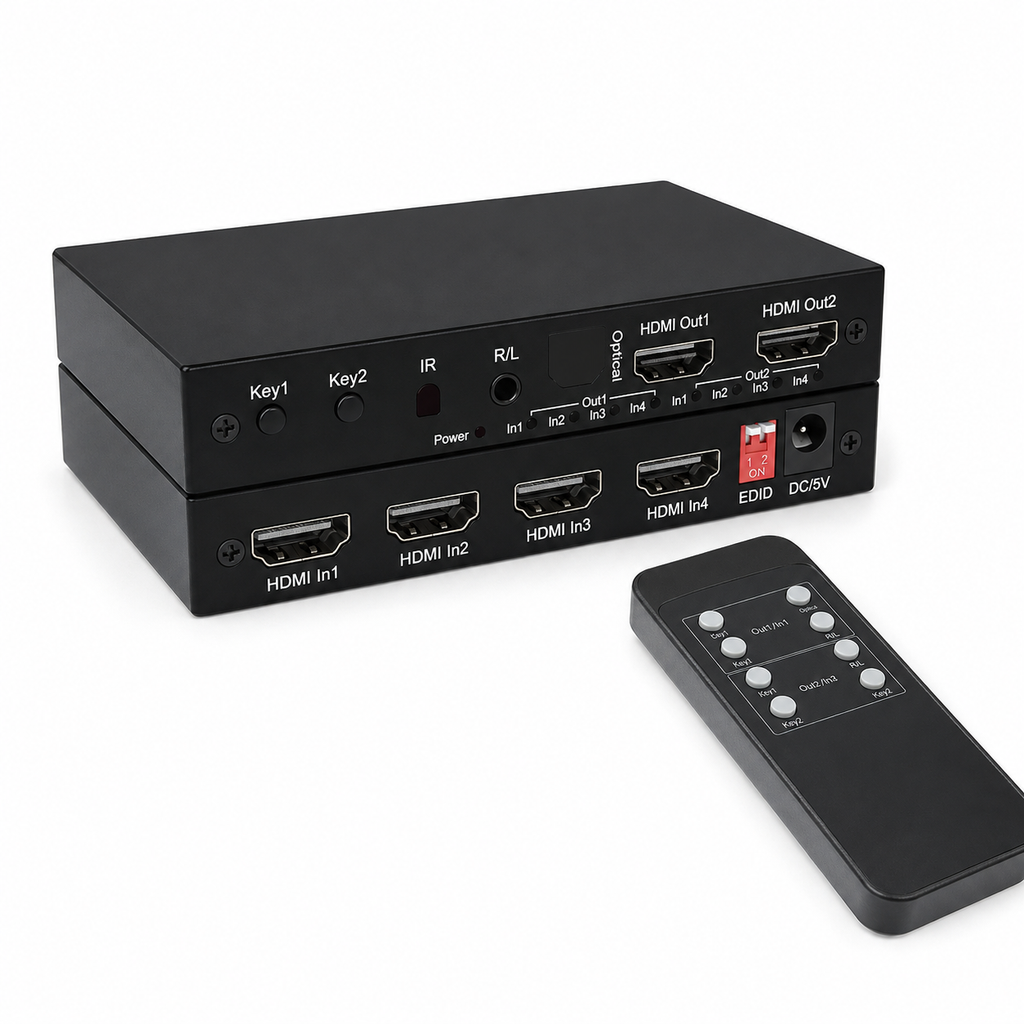

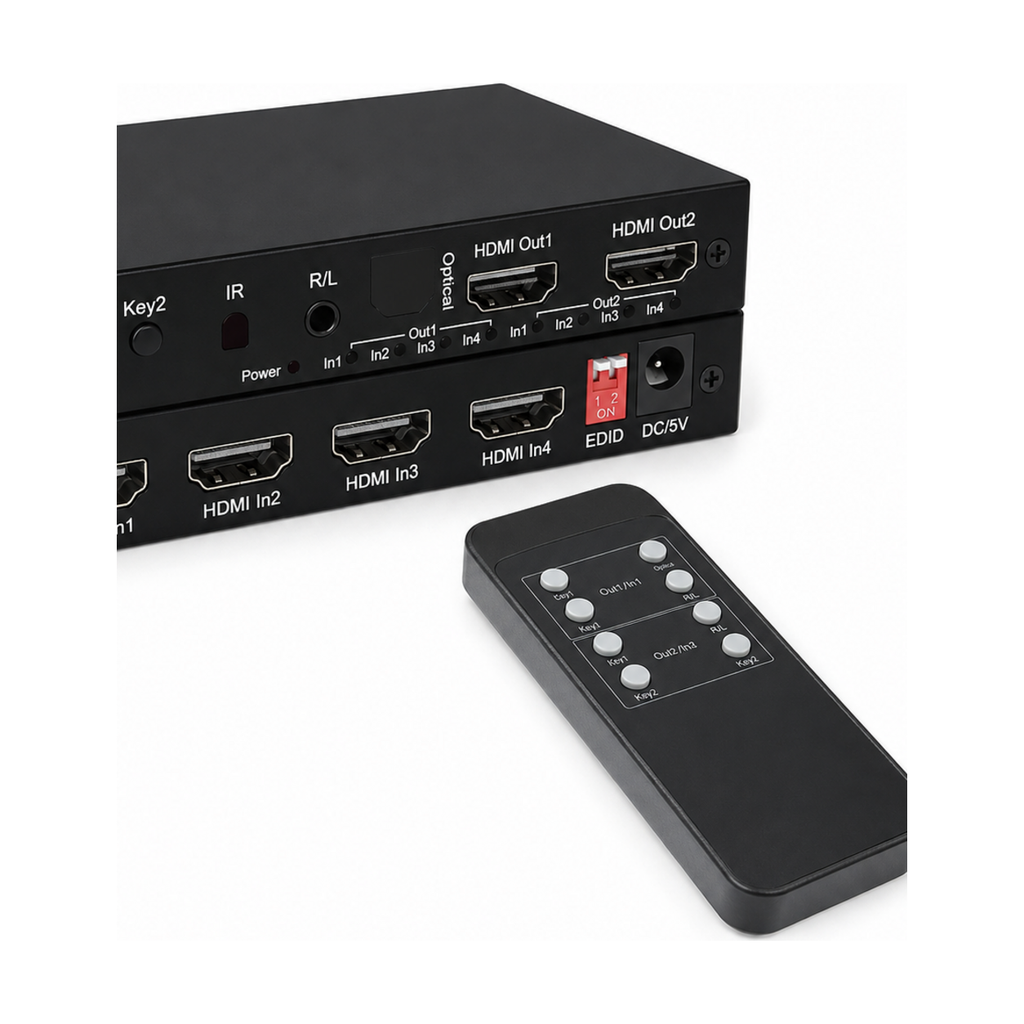

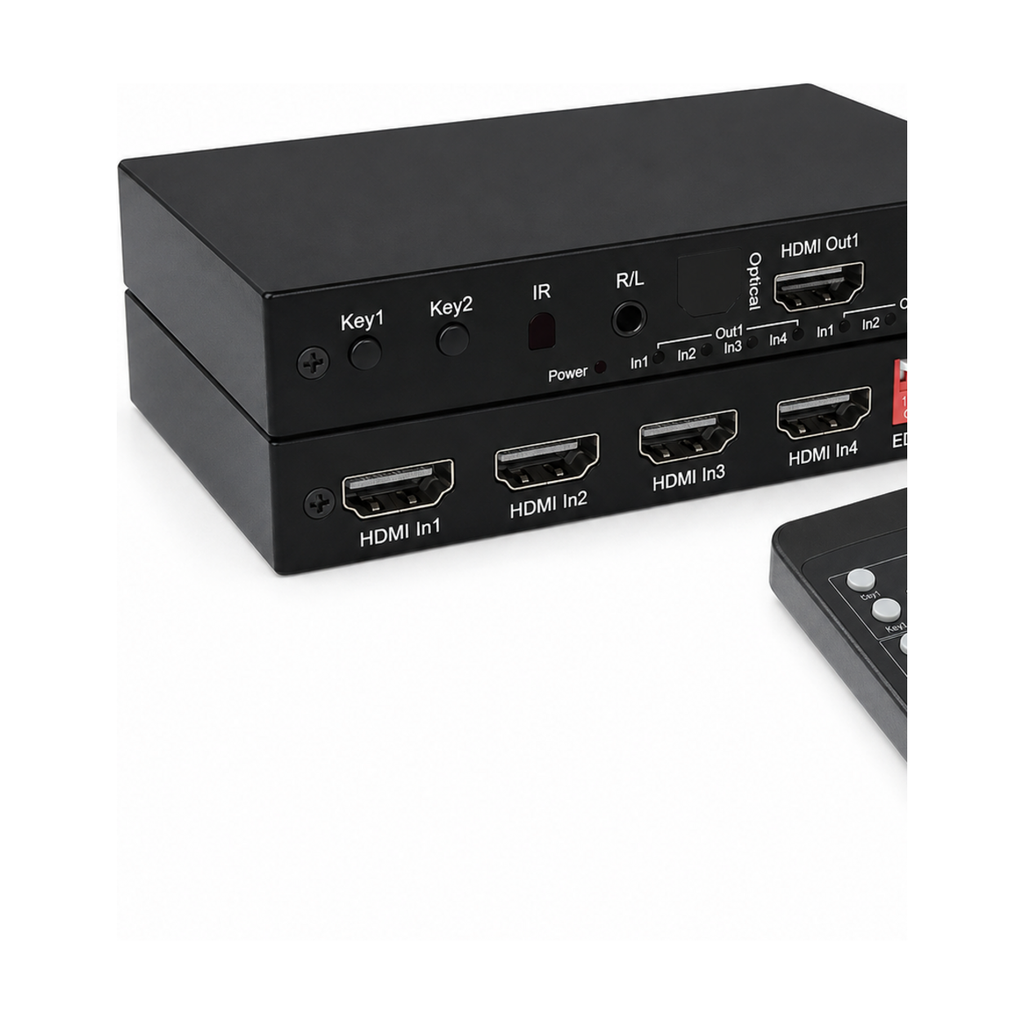

4K HDMI Matrix Switch – 4 Input / 2 Output

4K HDMI Matrix Switch – 4 Input / 2 Output for reliable desk, studio and technical workflows.

Route any of four HDMI sources to either of two HDMI displays. The 4×2 matrix format is suited to meeting rooms, demonstrations, home media systems and multi-source AV workstations.

Key benefits

• Independent source selection for two displays
• Four HDMI inputs reduce repeated cable swapping
• Selected configuration includes audio extraction and EDID controls

Technical specifications

Setup and use

1. Connect up to four HDMI source devices to the numbered inputs.
2. Connect one or two HDMI displays to outputs A and B.
3. Apply power, then select the desired source independently for each output.

Compatibility and safety checklist

• A matrix routes source signals; it does not create an extended computer desktop.
• HDR, colour depth, refresh rate, audio format and protected-content support depend on the entire HDMI chain.
• Use suitable high-bandwidth HDMI cables for higher resolutions.

Package contents

• 1 × 4×2 HDMI matrix switch
• 1 × infrared remote control
• Power accessory only as supplied with the selected configuration

Not included: HDMI cables and source/display equipment are not included.

Before ordering

Check the ports, protocols, operating-system support and complete system requirements against your equipment. Performance figures are advertised maximums for a compatible configuration and are not guaranteed in every installation.
