24MHz 8-Channel USB Logic Analyser for ARM and FPGA

Capture and inspect digital signals from microcontrollers, FPGA boards and embedded hardware with a compact USB logic analyser. The 8-channel design is a practical choice for protocol learning, debugging and hobby electronics.

Key features

• Eight digital input channels
• Advertised sampling rate up to 24MHz / 24 mega-samples per second
• USB connection to a compatible computer
• Useful for common embedded buses and digital signal timing
• Compact form factor for portable troubleshooting

Technical specifications

Compatibility

Compatible analysis software and drivers are required and may vary by operating system. Signal decoding capability depends on the software used. Check target voltage levels before connection and connect grounds correctly.

Package contents

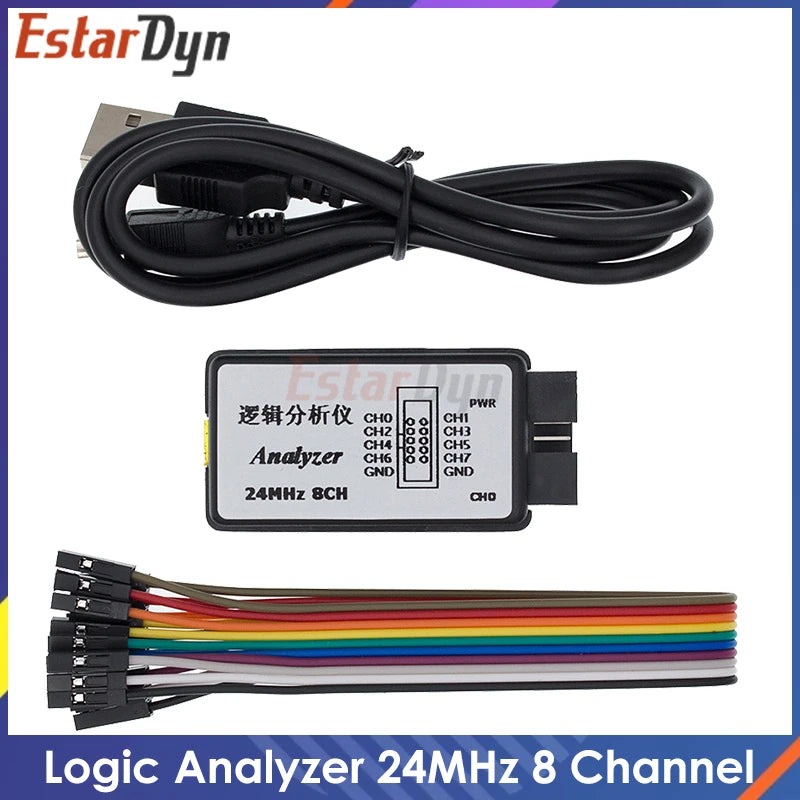

1 × USB logic analyser with the test leads shown for the fixed configuration. Computer and target development board are not included.
