$74.95

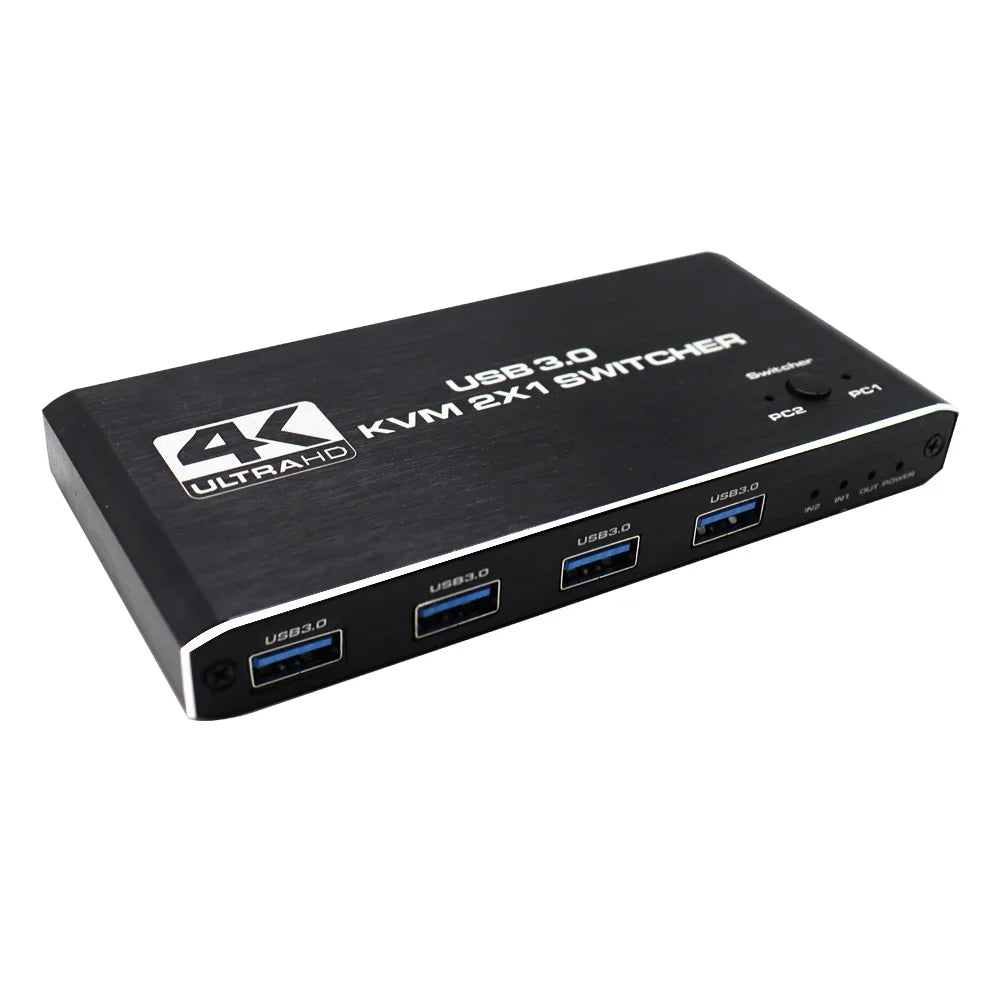

Share one HDMI display and up to four USB 3.0 peripherals between two computers. Switch the connected display, keyboard, mouse and other compatible USB devices from the button on the unit.

Key features

  • Two-computer, one-display HDMI KVM configuration
  • Four front USB 3.0 ports for compatible peripherals
  • Supplier-stated support for resolutions up to 3840 × 2160 at 60 Hz
  • Manual push-button switching
  • Supplier-stated EDID and HDCP support
  • USB-C 5 V power input

Specifications

LINEIN SKU LINEIN-CT-134

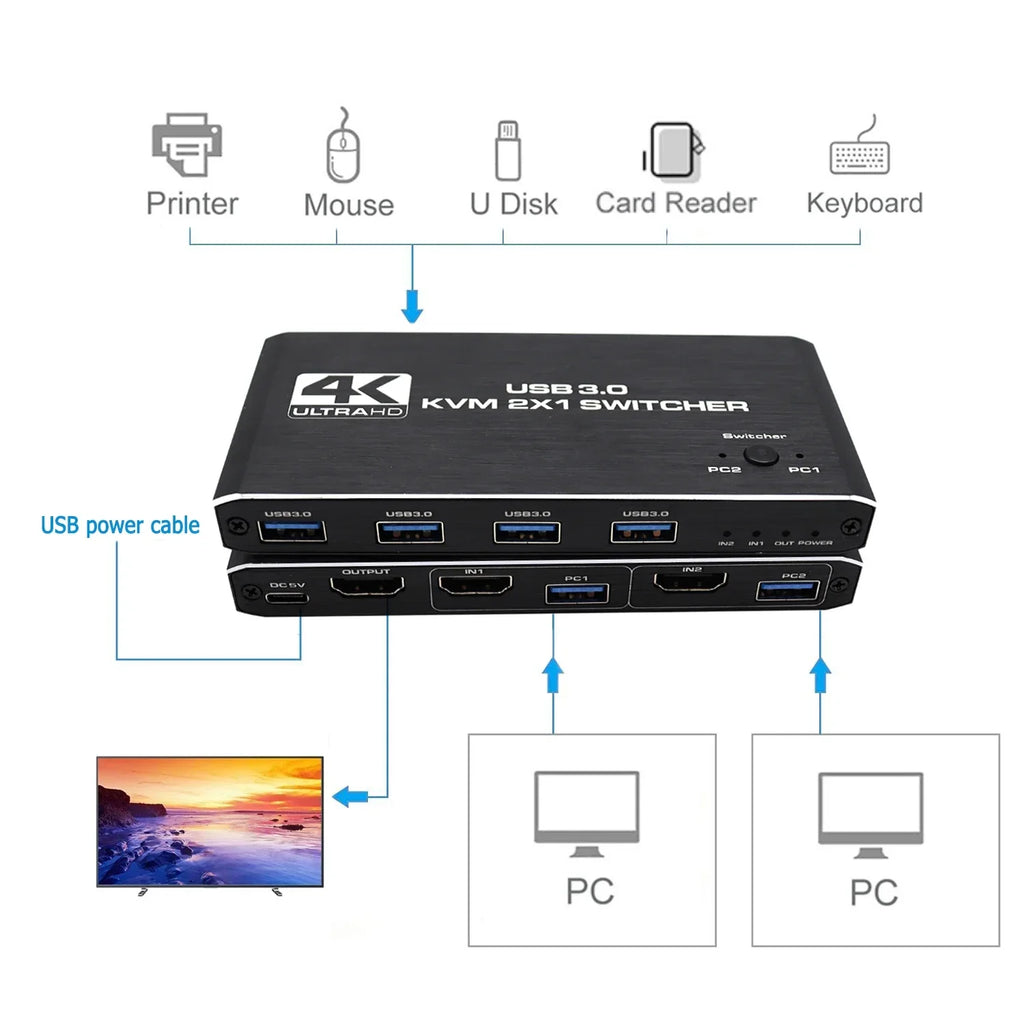

Computer inputs 2 × HDMI plus 2 × USB host connections
Display output 1 × HDMI
Shared USB ports 4 × USB 3.0
Switching method Button on the unit

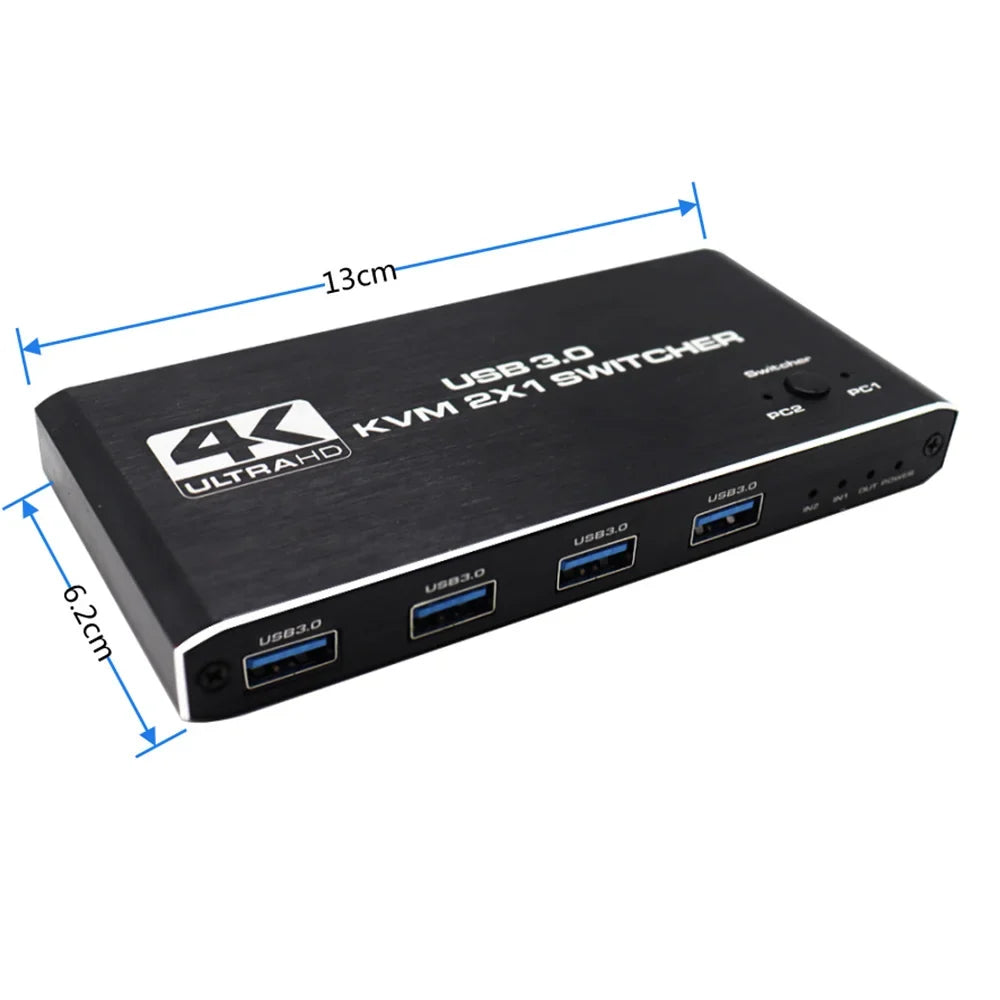

Approximate footprint 130 × 62 mm; height not specified

Compatibility notes

Maximum resolution and refresh rate depend on the connected computers, display and HDMI cables. This is a single-display KVM and does not create a dual-monitor setup. Check the required HDMI and USB cable connections before purchase. Package contents must be confirmed against the supplier batch before this draft is activated.
