2-Computer Triple Monitor DisplayPort 1.4 USB 3.0 KVM Switch – 8K

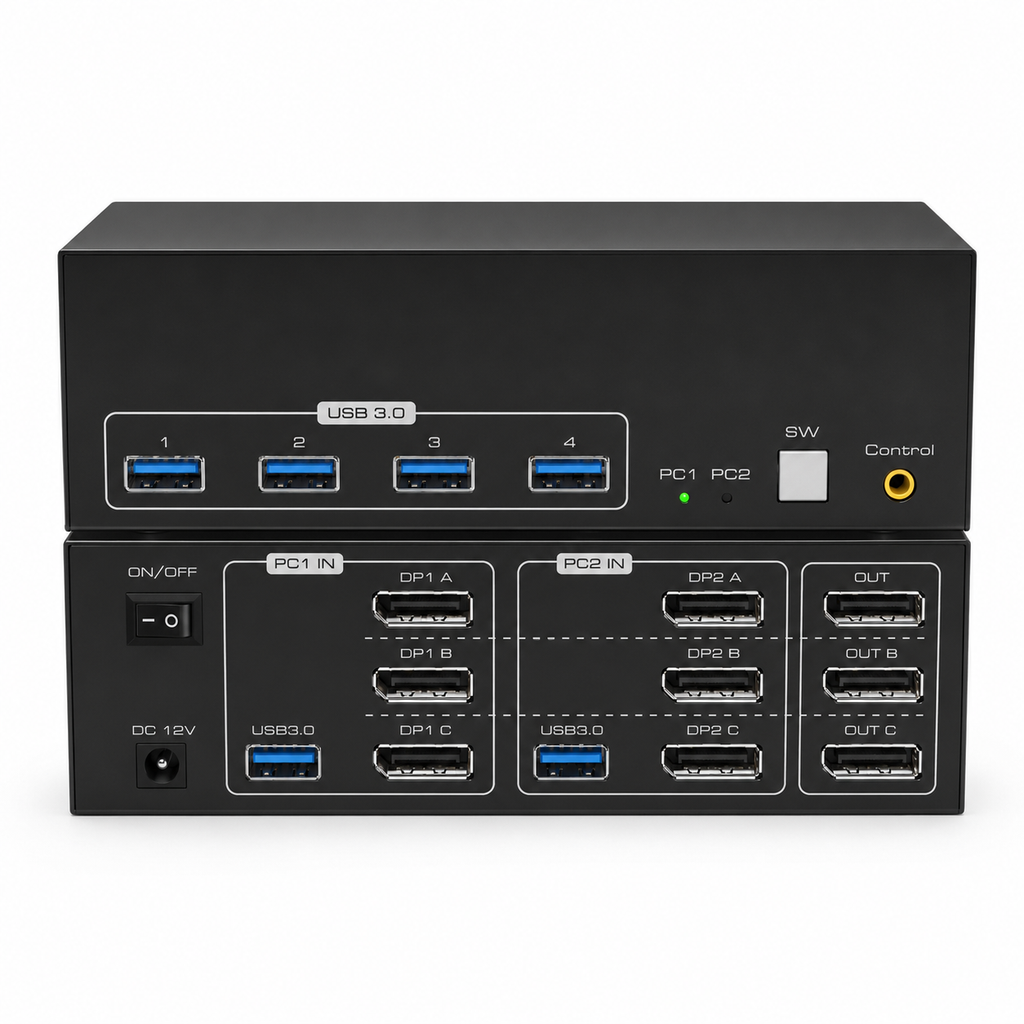

2-computer triple-monitor DisplayPort 1.4 USB 3.0 KVM switch

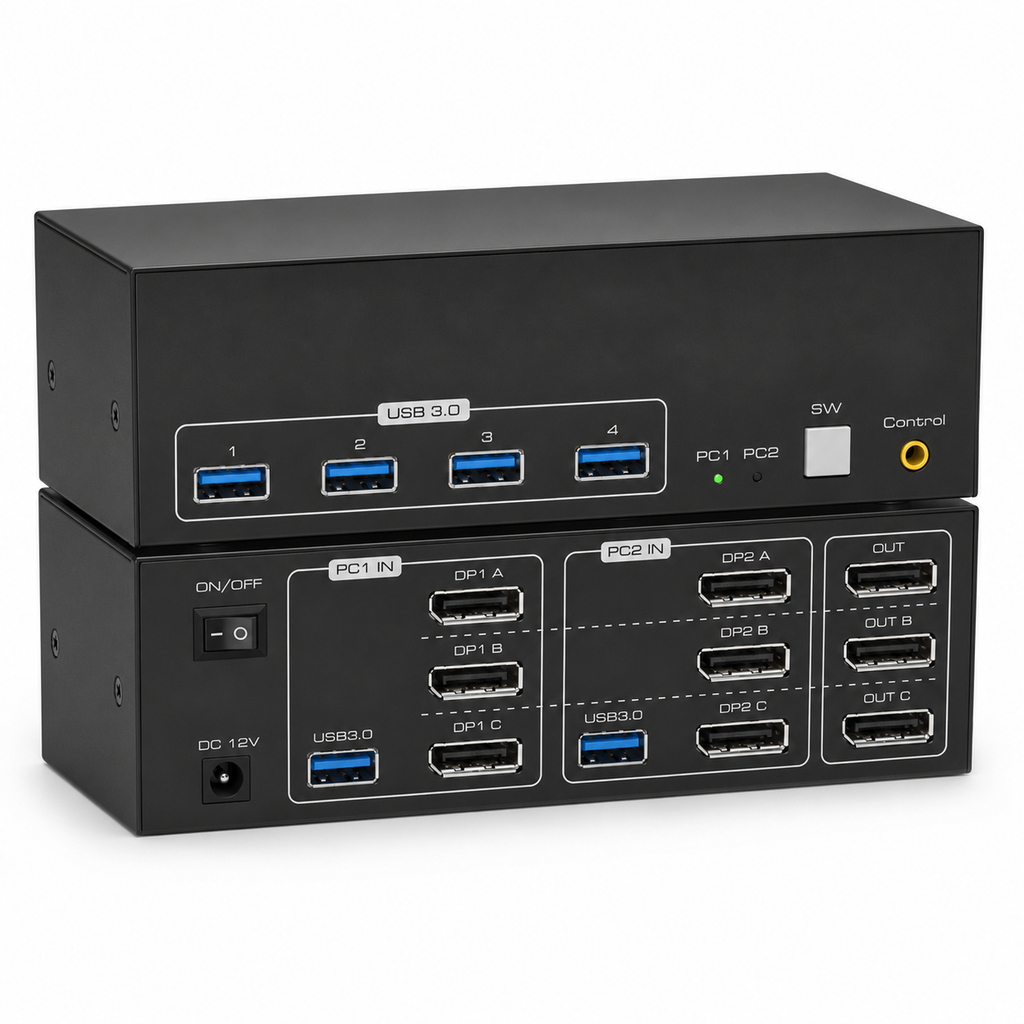

Triple-monitor DisplayPort KVM USB 3.0 ports and controls

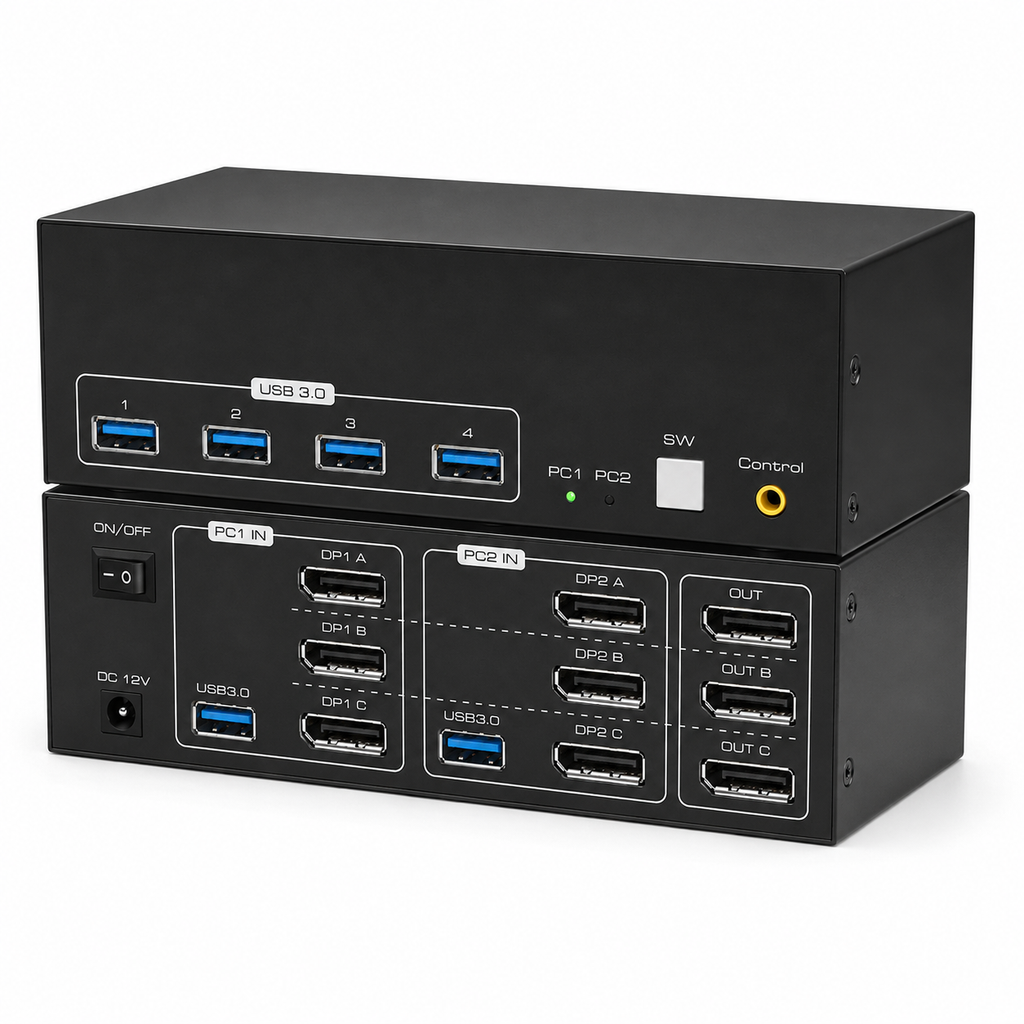

Triple-monitor KVM DisplayPort connection panel

2-Computer Triple Monitor DisplayPort 1.4 USB 3.0 KVM Switch – 8K

$399.95

Control two computers across three DisplayPort monitors while sharing one keyboard, mouse and up to four USB 3.0 peripherals. This fixed ZY-ASW233 configuration is designed for multi-display workstations and includes the supplier-selected Australian power-plug option.

Key features

Two computers share three DisplayPort monitors
Three DisplayPort inputs per computer and three DisplayPort outputs
Four front USB 3.0 Type-A ports for shared peripherals
Front-panel button and external wired-control connection
DisplayPort 1.4 and HDR support stated by the supplier
Supplier-stated maximums: 8K 60Hz, 4K 144Hz or 2K 165Hz on compatible signal paths
Fixed ZY-ASW233 with AU power plug; no customer options

Technical specifications

LINEIN SKU	LINEIN-CT-140
Supplier item	1005006208226011
Selected model	ZY-ASW233
Selected power option	AU Power Plug
Computers	2
Monitor outputs	3 × DisplayPort
Video inputs	6 × DisplayPort — 3 per computer
USB host inputs	2 × USB 3.0
Shared peripheral ports	4 × USB 3.0 Type-A
Power input	DC 12V
Supplier-stated video capability	Up to 8K 60Hz, 4K 144Hz or 2K 165Hz, subject to the complete signal chain

Compatibility notes

Each computer requires three DisplayPort outputs to drive all three monitors. Extended desktop support depends on the graphics hardware and operating system. Use suitable DisplayPort cables and confirm that every connected component supports the required resolution, refresh rate, HDR and HDCP features.

Before ordering

This switch routes existing video outputs; it does not create additional displays. Check computer ports, monitor ports and operating-system multi-monitor support before purchase.
