4-Computer HDMI 2.1 USB 3.0 KVM Switch with EDID – 8K 60Hz

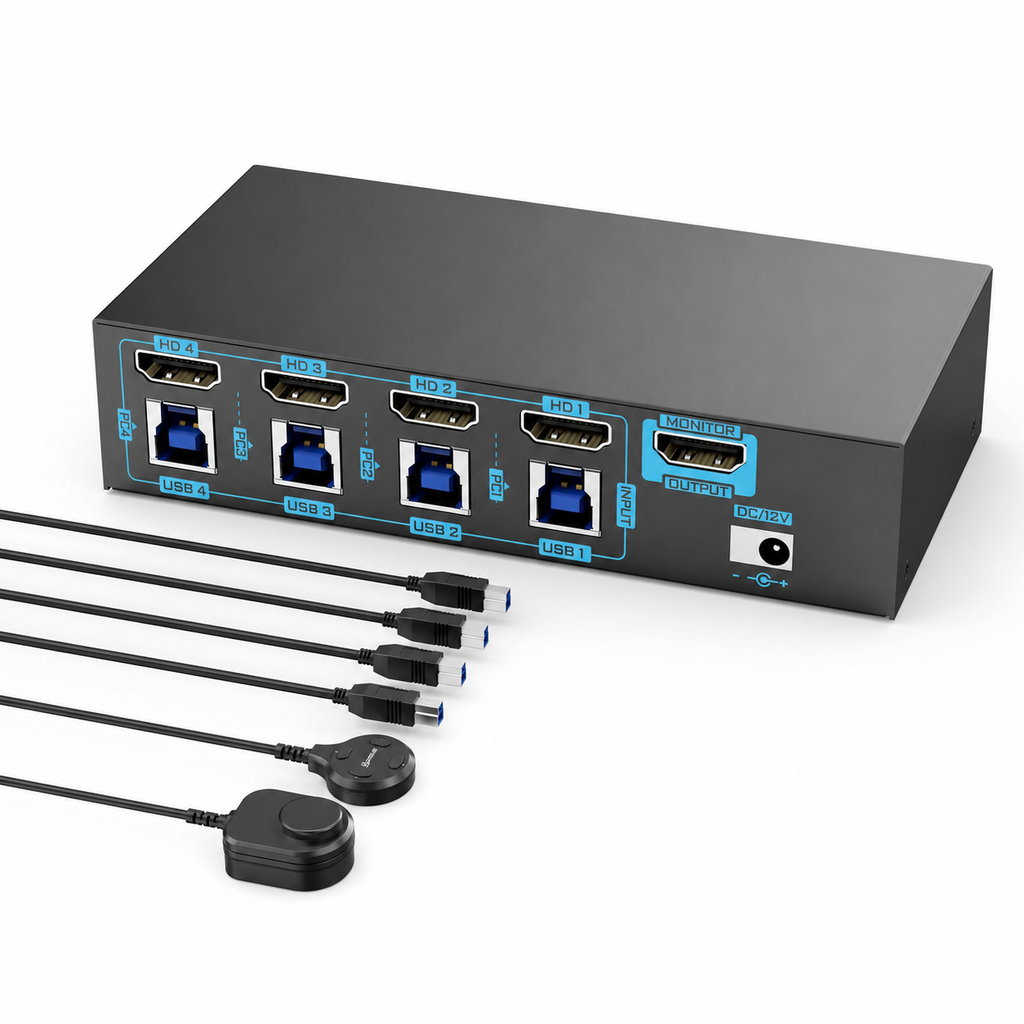

4-computer 8K HDMI 2.1 USB 3.0 KVM switch

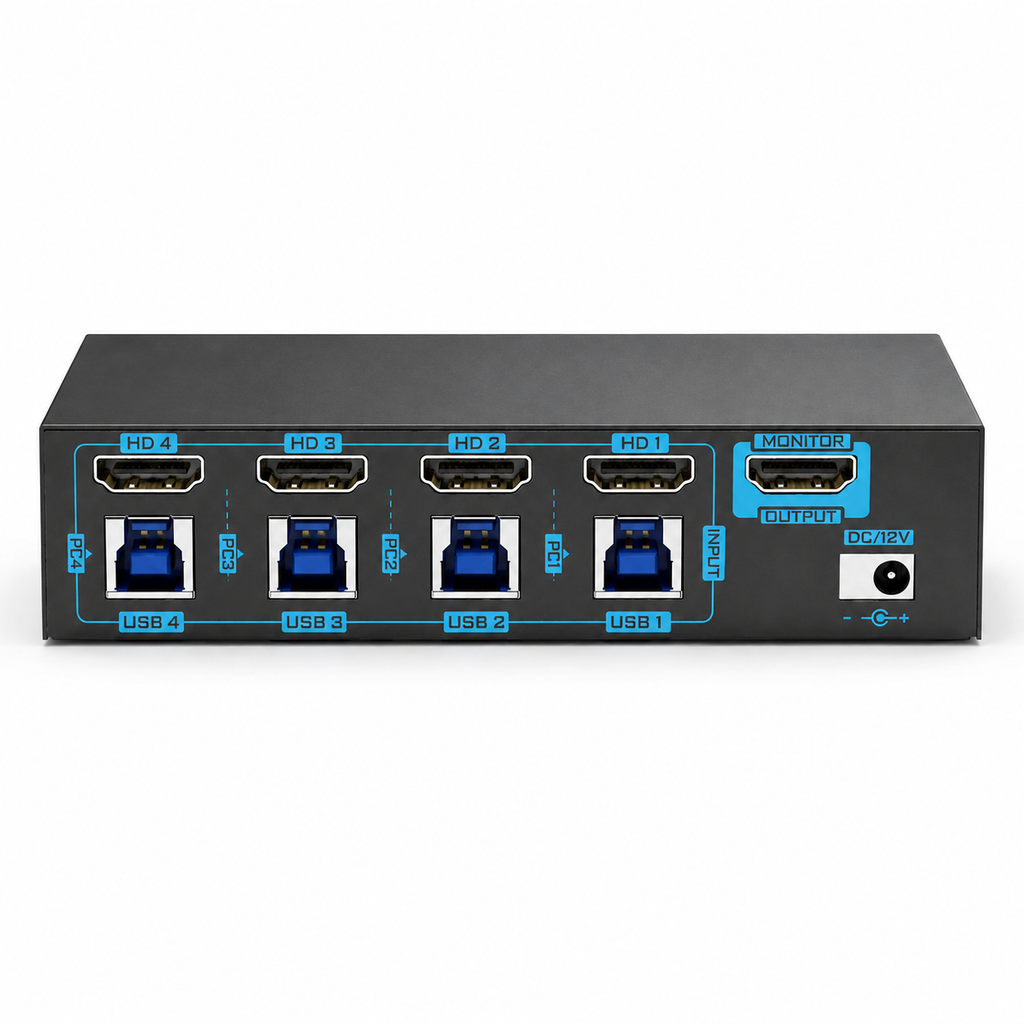

4-port HDMI KVM rear input and output panel

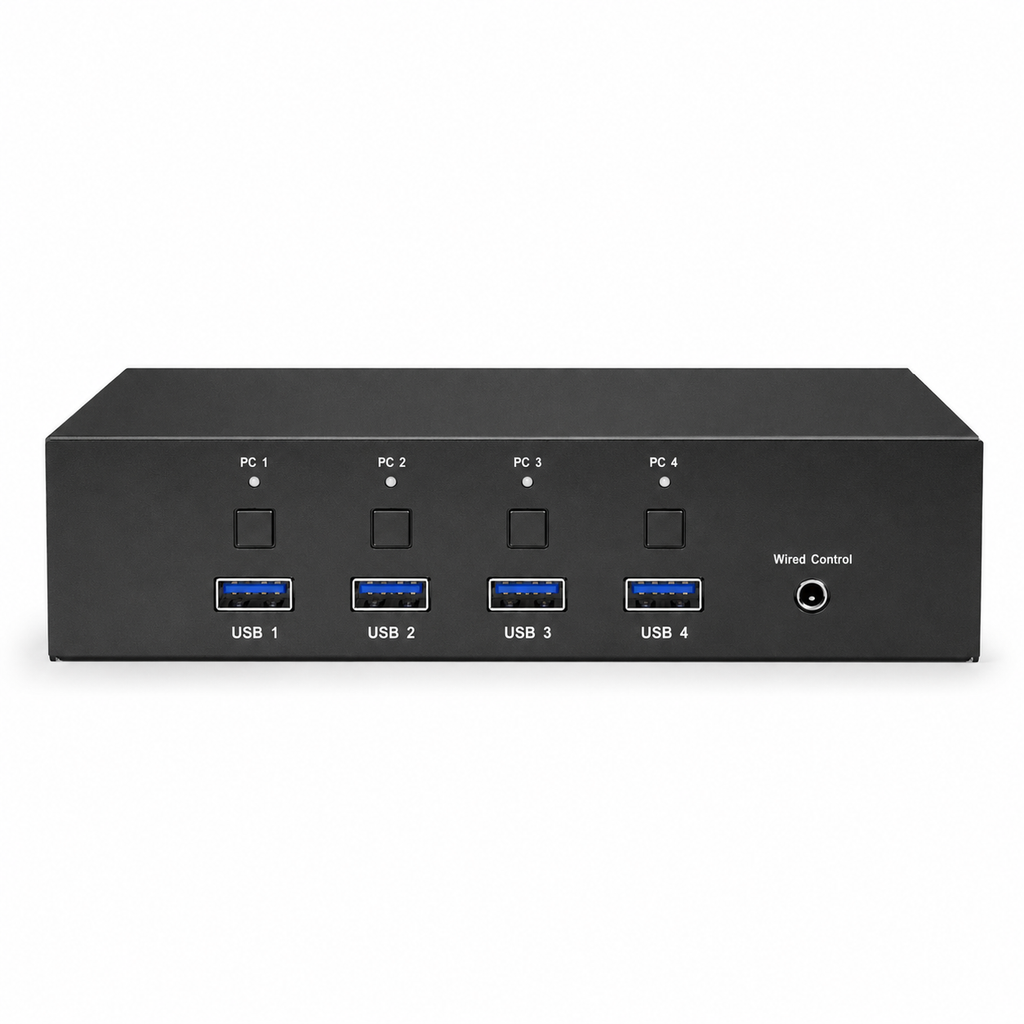

4-computer KVM front USB ports and selection controls

4-Computer HDMI 2.1 USB 3.0 KVM Switch with EDID – 8K 60Hz

$294.95

Switch one HDMI 2.1 monitor, keyboard, mouse and shared USB devices between four computers. This fixed 8K / 1.5 m cable configuration is suited to technical benches, multi-PC desks and compact control stations.

Key features

Four computers share one HDMI display
Four shared USB 3.0 Type-A peripheral ports
Four HDMI computer inputs and one HDMI monitor output
EDID emulation stated by the supplier to help retain display information while switching
Front PC-selection controls and wired remote-control interface
Supplier-stated support up to 8K 60Hz or 4K 144Hz with compatible equipment
Fixed 8K, 1.5 m cable option; no customer-selectable variants

Technical specifications

LINEIN SKU	LINEIN-CT-141
Supplier item	1005008304195776
Selected option	8K – 1.5 m
Computer inputs	4 × HDMI plus 4 × USB host
Display output	1 × HDMI
Shared peripheral ports	4 × USB 3.0 Type-A
Supplier-stated video capability	Up to 8K 60Hz / 4K 144Hz, subject to source, display and cables
EDID	EDID emulation supported according to supplier listing
Power input	DC 12V

Compatibility notes

All computers require HDMI output and USB host connection. High-resolution and high-refresh performance requires compatible HDMI 2.1 sources, display and cables. Gaming features, HDR and HDCP operation depend on the complete signal chain.
