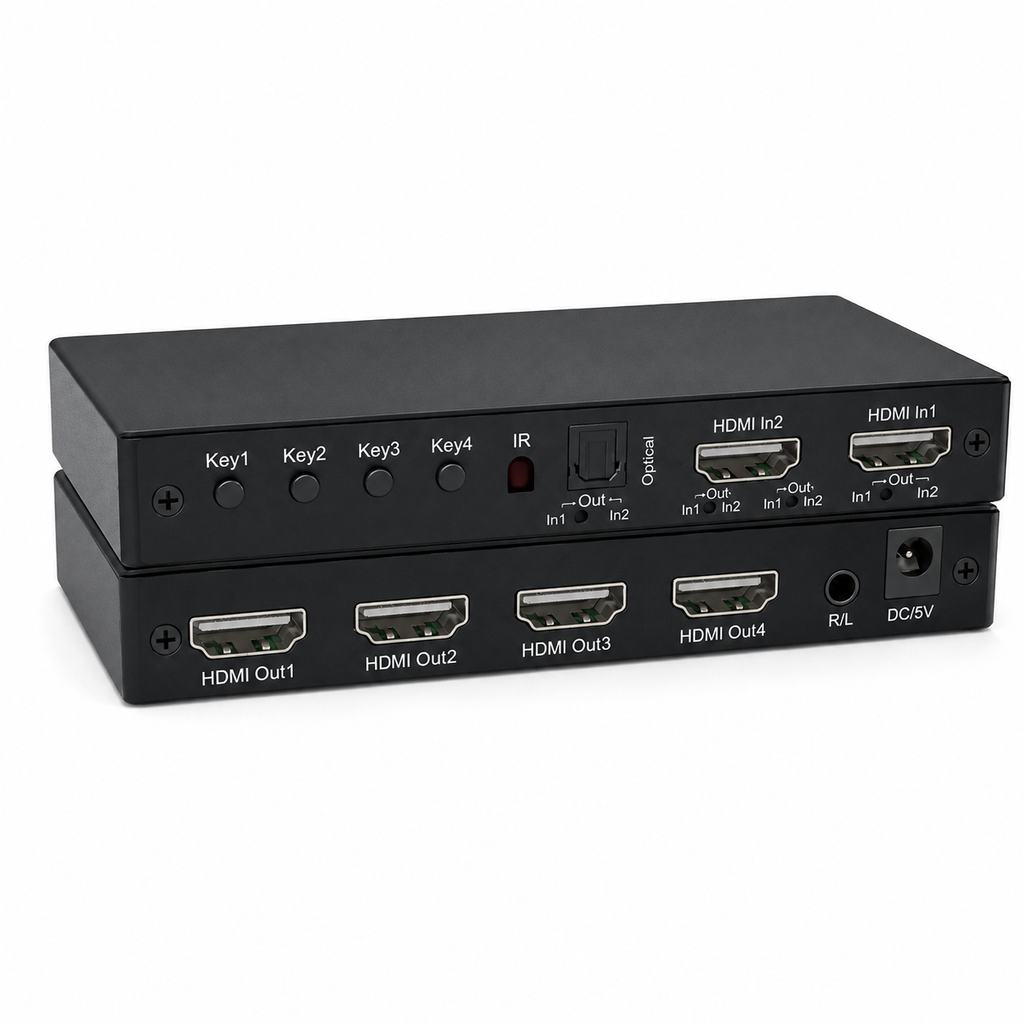

2×4 HDMI Matrix Switch with Optical & Stereo Audio – 4K 60Hz

Route either of two HDMI source devices to four HDMI displays, with independent output selection and extracted optical or analogue audio. This listing is the fixed 2-input × 4-output configuration supplied with the AU-plug option.

Key features

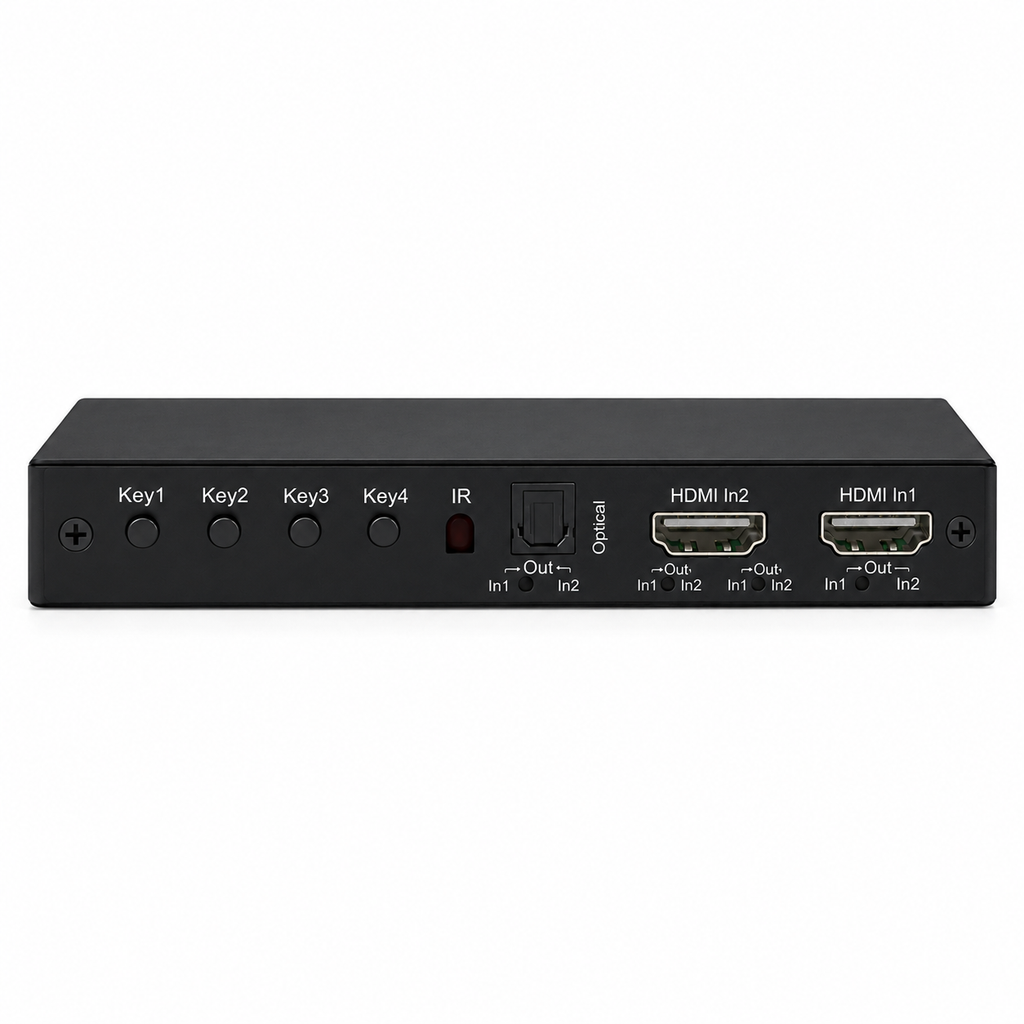

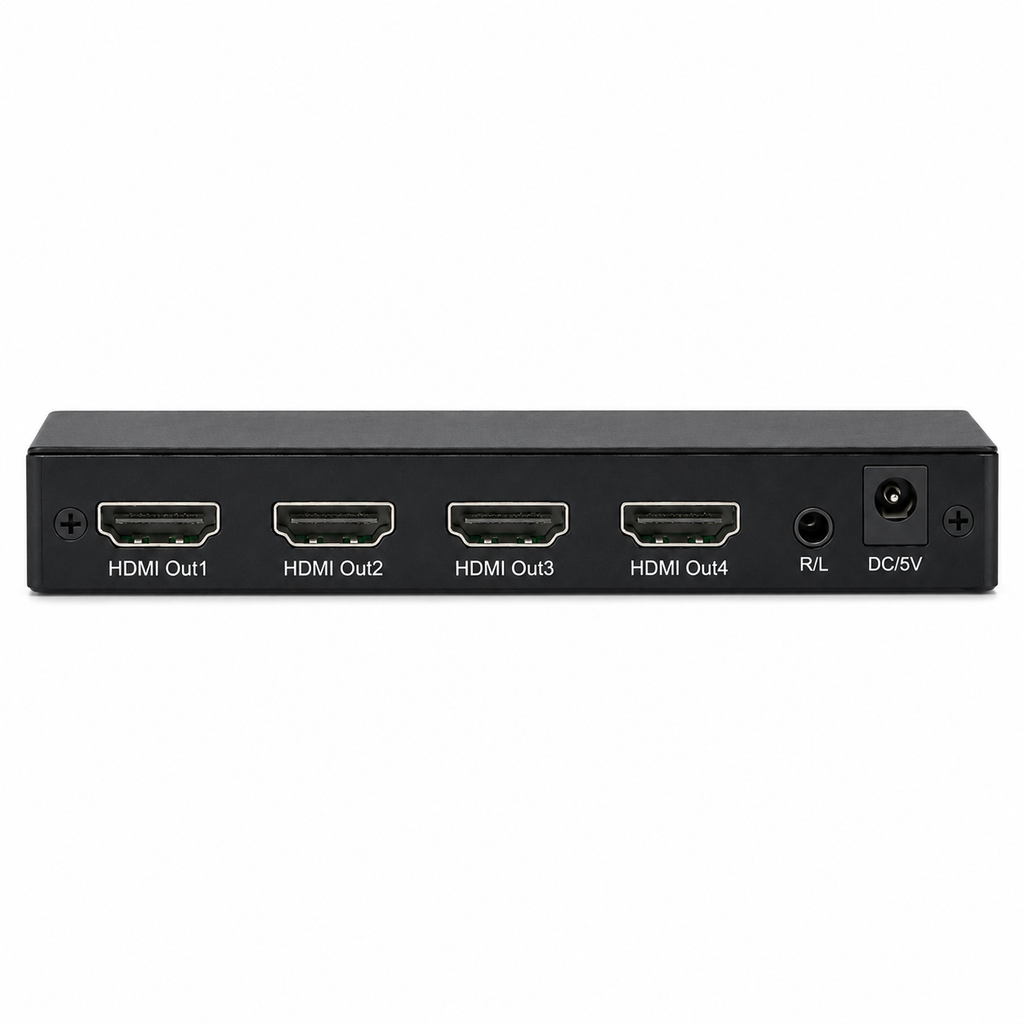

• Two HDMI inputs and four HDMI outputs
• Matrix routing allows each output to select either input
• Splitter mode can send one source to all four displays
• Supplier-stated support up to 4K at 60Hz
• Optical S/PDIF and 3.5 mm stereo audio extraction
• Front selection keys and infrared receiver
• Fixed 2×4 AU-plug configuration; no customer options

Technical specifications

Compatibility notes

All connected displays must support the selected source format. When one source is sent to several displays, resolution, refresh rate, HDR and HDCP behaviour can be limited by the least-capable device in the signal chain.

Before ordering

This is a 2×4 model. It does not accept four source devices. Confirm that you need two inputs and four outputs.
