4-Computer HDMI KVM Switch with 4 USB 3.0 Ports – 4K 60Hz

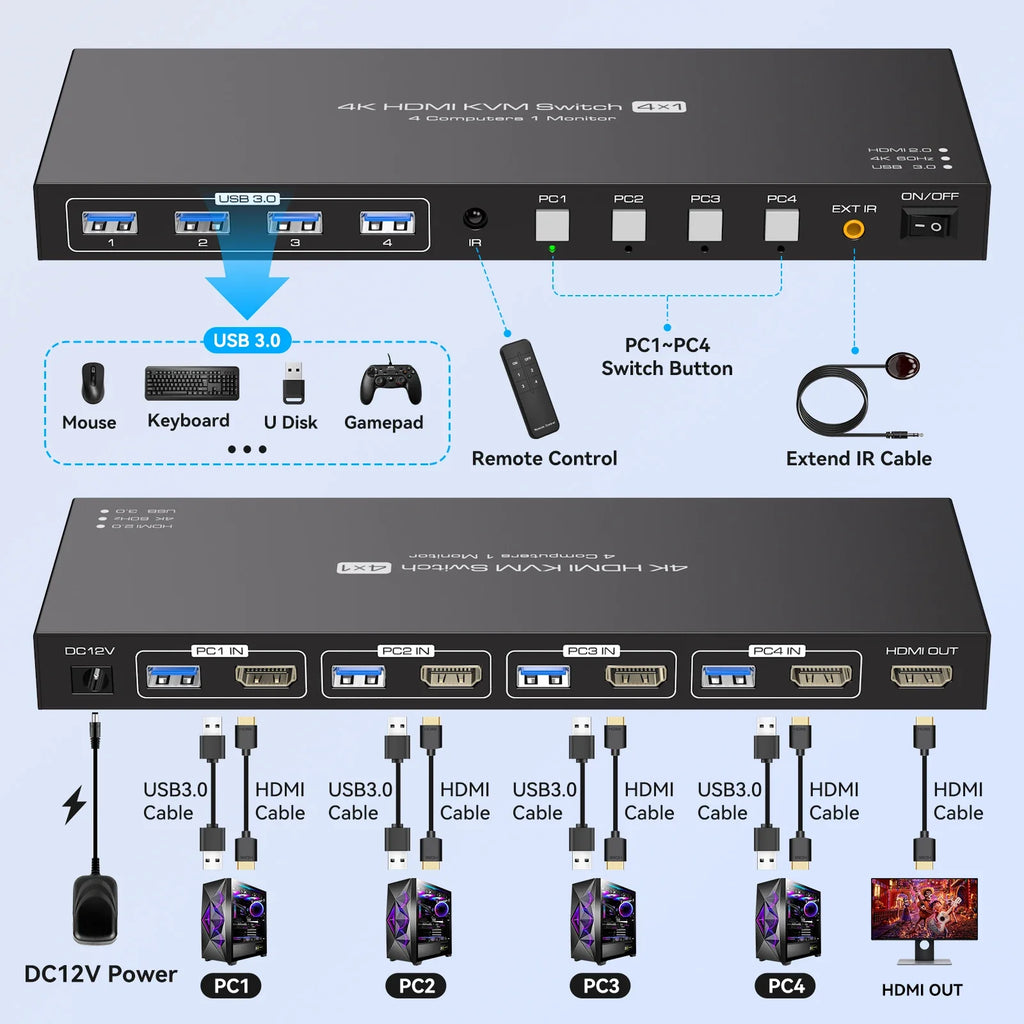

Four-computer HDMI KVM switch with four USB 3.0 ports, front view

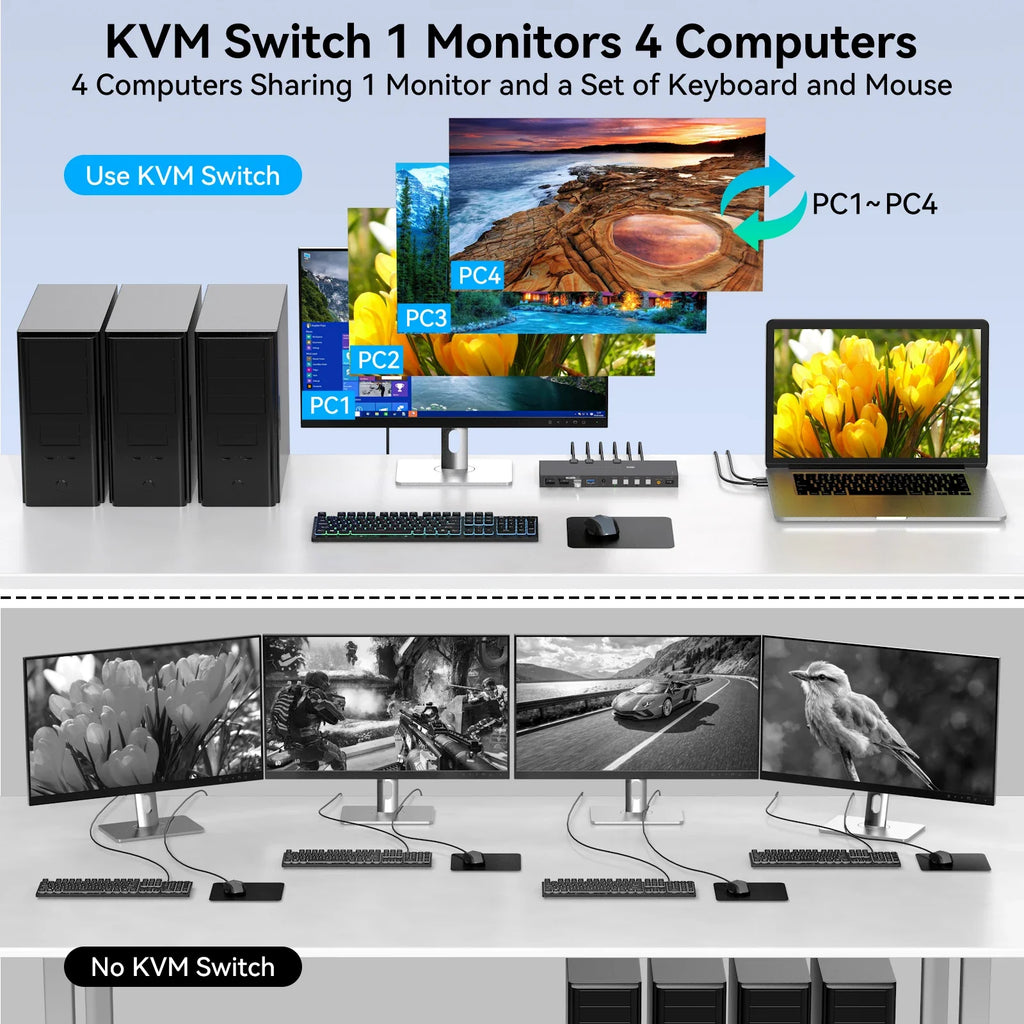

Four-computer HDMI KVM switch port and connection diagram

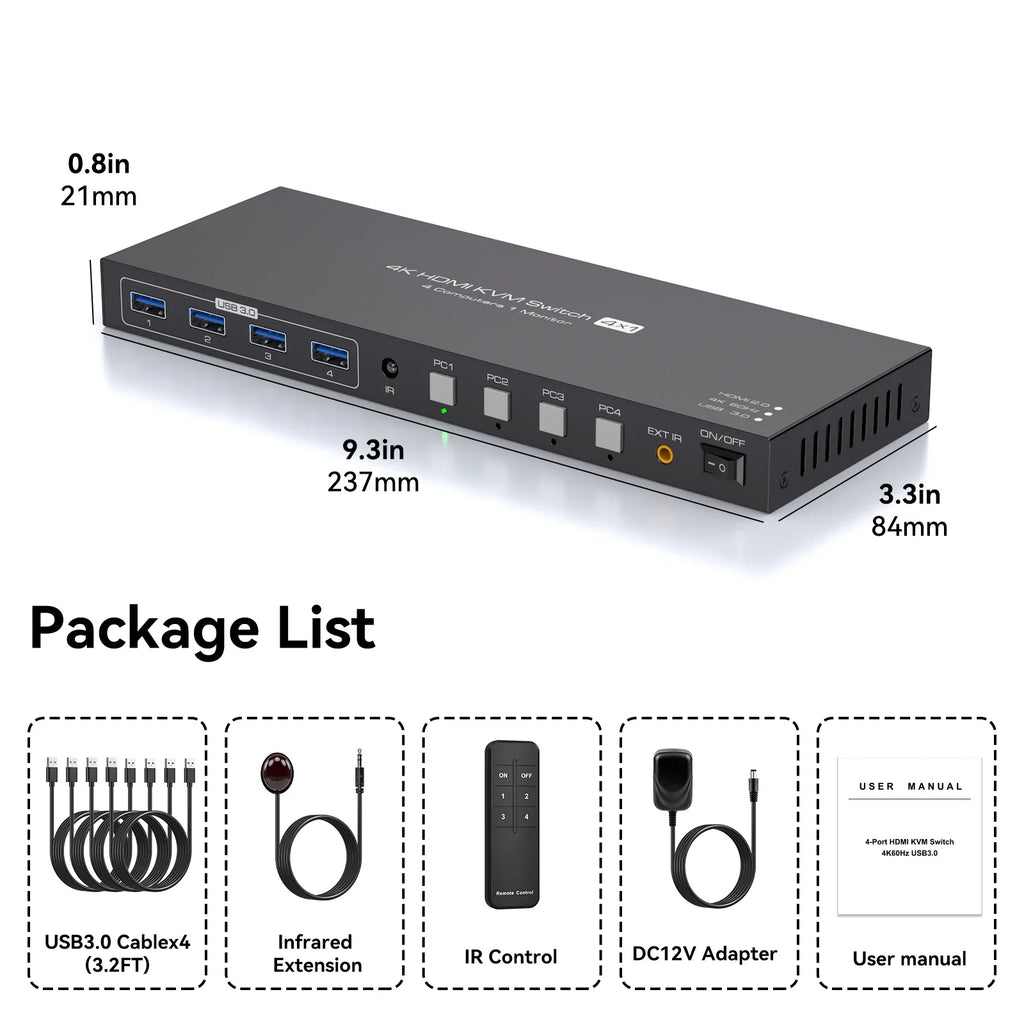

Four-computer HDMI KVM switch dimensions and package contents

4-Computer HDMI KVM Switch with 4 USB 3.0 Ports – 4K 60Hz

$169.95

Control four computers from one HDMI display and one set of USB peripherals. Select the active computer from the front-panel buttons or the supplied infrared remote.

Key features

Four computer inputs and one HDMI display output
Four shared USB 3.0 ports for compatible peripherals
Supplier-stated support for resolutions up to 3840 × 2160 at 60 Hz
HDMI 2.0 and USB 3.0 connections
Front-panel and infrared remote switching
AU plug power-adapter option selected

Specifications

LINEIN SKU	LINEIN-CT-135
Computer inputs	4 × HDMI plus 4 × USB host connections
Display output	1 × HDMI
Shared USB ports	4 × USB 3.0
Switching methods	Front buttons and infrared remote
Dimensions	Approximately 237 × 84 × 21 mm
Power	DC 12 V adapter; AU plug option selected

Package contents

KVM switch, four USB 3.0 host cables, infrared extension receiver, infrared remote, DC 12 V AU-plug adapter and user manual. HDMI cables are not shown in the supplier package list.

Compatibility notes

Maximum resolution and refresh rate depend on the connected computers, display and HDMI cables. This is a single-display KVM and does not create a multi-monitor desktop. Confirm cable lengths and required HDMI cables before installation.
