$39.95

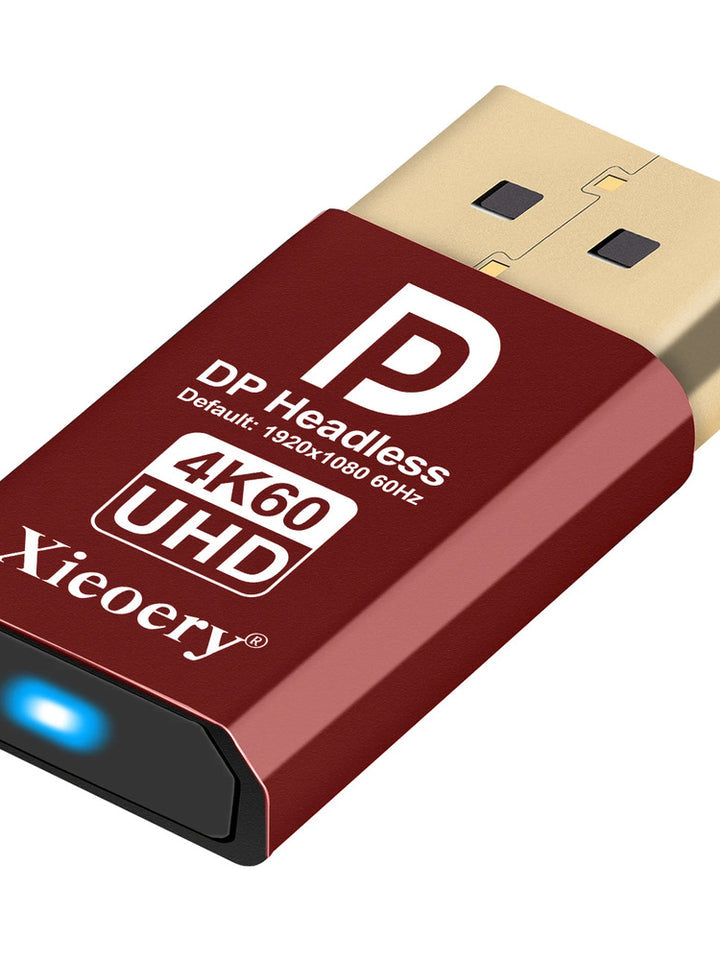

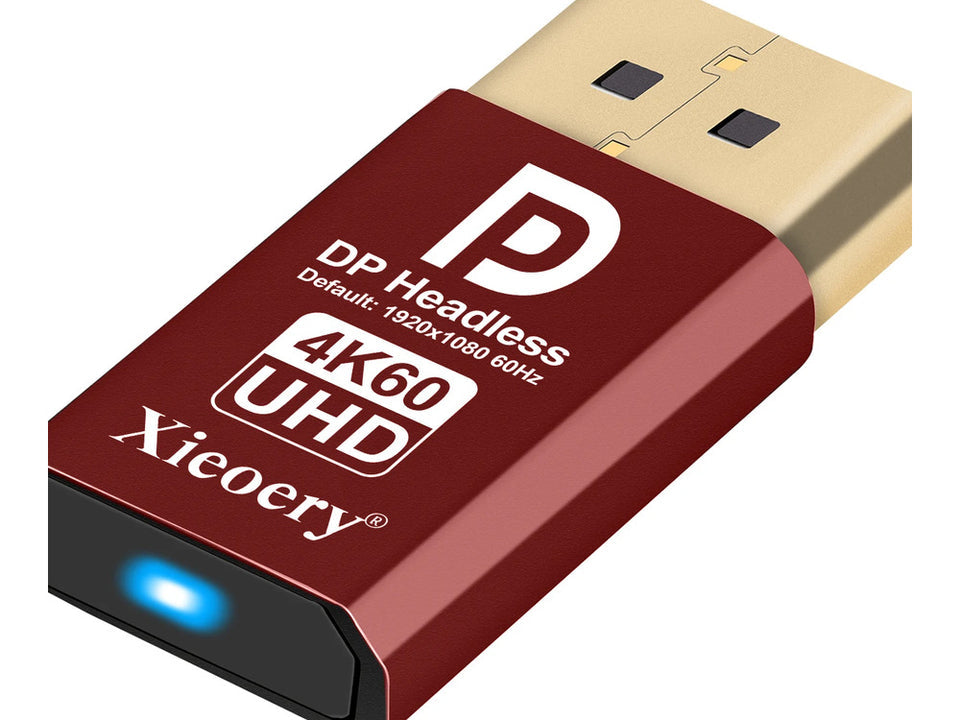

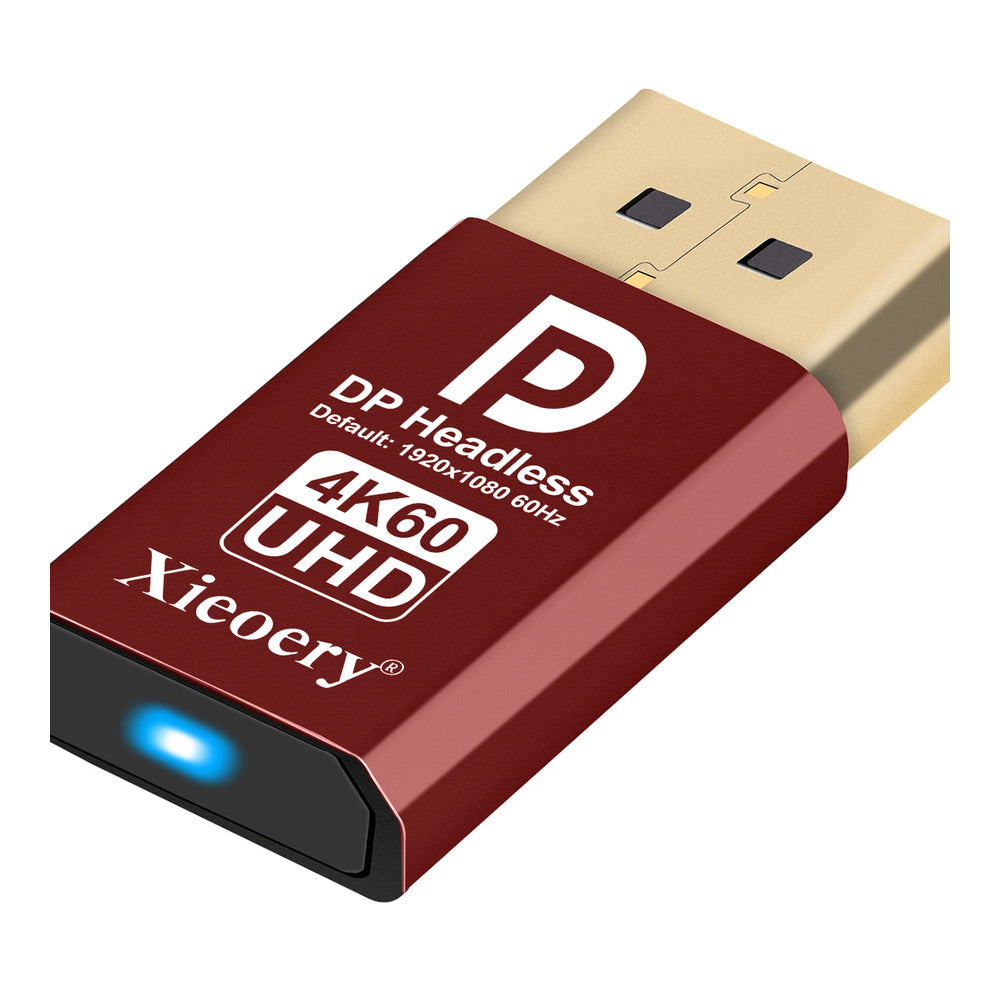

Creates a persistent virtual DisplayPort display for compatible headless computers. Supports advertised modes up to 4K at 60Hz plus common high-refresh lower resolutions. Useful for remote desktop, GPU compute, digital signage control and server maintenance.

Key features

  • Creates a persistent virtual DisplayPort display for compatible headless computers
  • Supports advertised modes up to 4K at 60Hz plus common high-refresh lower resolutions
  • Useful for remote desktop, GPU compute, digital signage control and server maintenance

Technical specifications

LINEIN SKU LINEIN-CT-066
Connector DisplayPort male
Maximum advertised mode 4K 60Hz
Function Headless EDID display emulation
Power Drawn from DisplayPort
Selected configuration Single fixed DP emulator

Compatibility and installation

Check the connector direction, host capability, operating-system support and the complete cable/device signal chain before ordering. Install or connect only when equipment is powered down where appropriate.

Before you buy: This is not a video capture device and does not create a physical picture output. Available resolutions depend on the GPU, driver and operating system.

Package: one fixed LINEIN-CT-066 configuration as described. Computers, displays, drives, cards and cables shown for context are not included unless explicitly stated.
